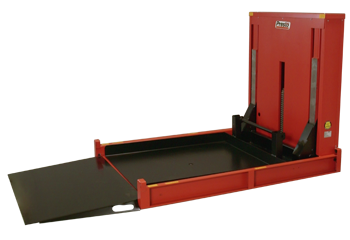

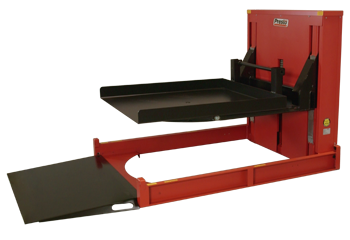

P4 Floor Height Load Leveler with Built-In Turntable

• Can be loaded and unloaded with Hand Pallet Truck – No forklift required
• Built-In Turntable spins for nearside loading/unloading
• Operator controlled height adjustment
• 2,500 pound load capacity

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

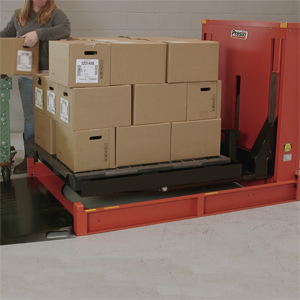

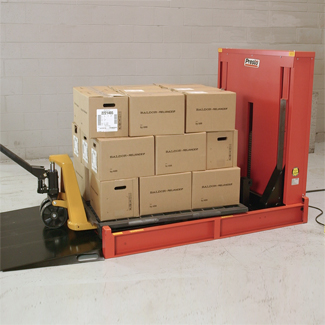

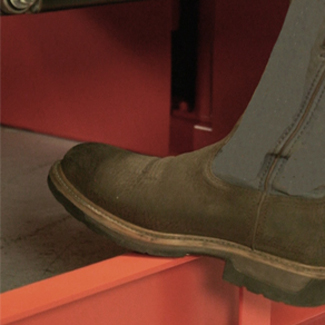

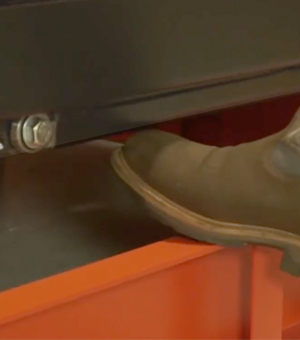

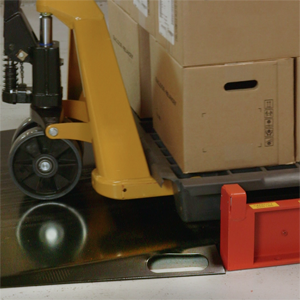

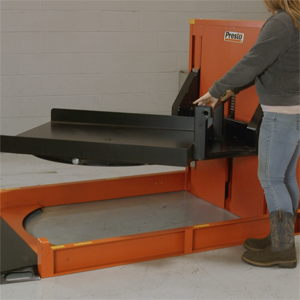

P4 Floor Height Load Leveler with Built-In Turntable Load and Unload with a Hand Pallet Truck Hand Truck Rolls Easily Up Ramp No Forklift of Stacker Necessary to Load or Unload Operator Controlled Height Adjustability Boxes Are at a Comfortable Height - No Bending or Reaching Platform Spins Easily - No Need to Walk Around the Pallet Toe Sensor Stops Lowering When Beam is Broken The P4 Floor Height Load Leveler with built-in Turntable can be loaded or unloaded with an ordinary hand pallet truck. Load height is easily adjusted by the operator to keep the top layer of boxes at a comfortable, easy-to-access height. The built-in turntable accepts a wide range of pallet sizes and rotates easily so workers can load/unload from a single position without having to reach across or walk around the pallet. The 31” ramp provides a gentle incline that facilitates loading with a hand pallet truck.

• Model Number	Load Capacity	Raised Height	Lowered Height	Platform Size	Lifting Speed	Std. Motor	Std. Voltage Phase/Hz	Shipping Weight
  P4 Series
  P4-LPT	2500 lbs	30"	2"	44 x 48"	30 sec	1 HP	115/1/60	1400 lbs

  Options & Accessories

  • ONE TOUCH AUTO-LEVELING

  • ONE TOUCH AUTO-LEVELING

    Unit can be set to raise or lower a preset increment at the touch of a button. This is especially helpful in dedicated applications where box dimensions remain constant from load to load.
