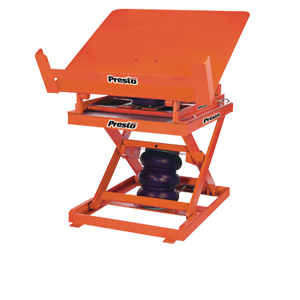

AXT Series Pneumatic Lift & Tilt Tables

• Available platforms from 36" x 48" up to 48" x 60"
• Standard pedestal control/Optional foot control
• Air requirements are 80 psi at 15 cfm
• Pressure relief valve standard
• Lifetime warranty on actuator
• Custom designs available

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

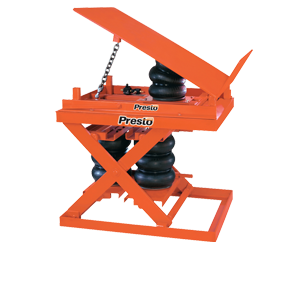

AXT Series Pneumatic Lift & Tilt Scissor Lift Tables Independently Control Height and Angle Presto Pneumatic Lift and Tilt Tables - AXT Series and Heavy-Duty Pneumatic Lift and Tilt Tables - AXST Series, Lift loads to the most comfortable working height, and then tilt them for easy access. Tilt tops can be equipped with special fixtures, lips and gussets for positioning a wide range of baskets and containers. Lift heights of 36" to 43" are available. Loads can be tilted to any angle from 0˚ to 30˚. Lift and Tilt functions are controlled independently and are achieved by the use of heavy-duty air bags. Choose from 1,000, 2,000, 4,000, or 6,000 lb. capacities.

• Model Number	Load Capacity	Raised Height	Low Height	Degree of Tilt	Vertical Travel	Base Size W x L	Platform Size W x L	Shipping Weight
  AXT10 Series
  AXT10-3648	1000 lbs	36"	15"	30°	21"	36 x 48"	36 x 48"	1190 lbs
  AXT10-4848	1000 lbs	36"	15"	30°	21"	36 x 48"	48 x 48"	1300 lbs
  AXT10-4856	1000 lbs	36"	15"	30°	21"	36 x 48"	48 x 56"	1390 lbs
  AXT10-4860	1000 lbs	36"	15"	30°	21"	36 x 48"	48 x 60"	1440 lbs
  AXT20 Series
  AXT20-3648	2000 lbs	39"	15"	30°	24"	36 x 48"	36 x 48"	1365 lbs
  AXT20-4848	2000 lbs	39"	15"	30°	24"	36 x 48"	48 x 48"	1395 lbs
  AXT20-4856	2000 lbs	39"	15"	30°	24"	36 x 48"	48 x 56"	1450 lbs
  AXT20-4860	2000 lbs	39"	15"	30°	24"	36 x 48"	48 x 60"	1540 lbs
  AXT40 Series
  AXT40-4848	4000 lbs	39"	15"	30°	24"	48 x 48"	48 x 48"	1540 lbs
  AXT40-4856	4000 lbs	39"	15"	30°	24"	48 x 48"	48 x 56"	1595 lbs
  AXT40-4860	4000 lbs	39"	15"	30°	24"	48 x 48"	48 x 60"	1635 lbs
  AXST20 Series
  AXST20-3648	2000 lbs	43"	19"	30°	24"	36 x 48"	36 x 48"	1200 lbs
  AXST20-4848	2000 lbs	43"	19"	30°	24"	36 x 48"	48 x 48"	1320 lbs
  AXST20-4856	2000 lbs	43"	19"	30°	24"	36 x 48"	48 x 56"	1460 lbs
  AXST20-4860	2000 lbs	43"	19"	30°	24"	36 x 48"	48 x 60"	1540 lbs
  AXST40 Series
  AXST40-3648	4000 lbs	43"	19"	30°	24"	36 x 48"	36 x 48"	1450 lbs
  AXST40-4848	4000 lbs	43"	19"	30°	24"	36 x 48"	48 x 48"	1570 lbs
  AXST40-4856	4000 lbs	43"	19"	30°	24"	36 x 48"	48 x 56"	1690 lbs
  AXST40-4860	4000 lbs	43"	19"	30°	24"		48 x 60"	1770 lbs
  AXST60 Series
  AXST60-4848	6000 lbs	43"	19"	30°	24"	48 x 48"	48 x 48"	1660 lbs
  AXST60-4856	6000 lbs	43"	19"	30°	24"	48 x 48"	48 x 56"	1780 lbs
  AXST60-4860	6000 lbs	43"	19"	30°	24"	48 x 48"	48 x 60"	1860 lbs
