AXSR Series Heavy-Duty Turntable Lifts

These heavy-duty pneumatic lift tables are available with capacities up to 8,000.

They feature an integrated turntable platform that allows workers to rotate loads for access to all sides without walking around the lift. This is especially helpful in manufacturing and assembly when tools are only available on one side of the lift table. In palletizing applications it eliminates the need to stretch for boxes on the farside or walking around the load.

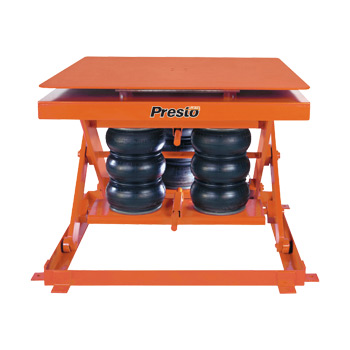

AXSR Series Heavy-Duty Pneumatic Lift with Turntable

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		Vertical
Travel 		Base
Size W xL 		Platform
Size W x L 		Shipping Weight
Model
Number : AXSR20 Series
Model
Number : AXSR20-3648
Load
Capacity : 2000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 36" x 48"
Shipping Weight: 1155 lbs
Model
Number : AXSR20-4848
Load
Capacity : 2000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1295 lbs
Model
Number : AXSR20-4856
Load
Capacity : 2000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1385 lbs
Model
Number : AXSR20-4860
Load
Capacity : 2000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1450 lbs
Model
Number : AXSR40 Series
Model
Number : AXR40-3648
Load
Capacity : 4000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 36" x 48"
Shipping Weight: 1370 lbs
Model
Number : AXR40-4848
Load
Capacity : 4000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1420 lbs
Model
Number : AXR40-4856
Load
Capacity : 4000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1550 lbs
Model
Number : AXR40-4860
Load
Capacity : 4000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1595 lbs
Model
Number : AXSR60 Series
Model
Number : AXSR60-4848
Load
Capacity : 6000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1720 lbs
Model
Number : AXSR60-4856
Load
Capacity : 6000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1850 lbs
Model
Number : AXSR60-4860
Load
Capacity : 6000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1895 lbs
Model
Number : AXSR80 Series
Model
Number : AXSR80-4848
Load
Capacity : 8000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1720 lbs
Model
Number : AXSR80-4856
Load
Capacity : 8000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1850 lbs
Model
Number : AXSR80-4860
Load
Capacity : 8000 lbs
Raised
Height : 39"
Lowered
Height : 15"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1895 lbs

Share this product

  • Standard Capacities: 2,000, 4,000 and 8,000 lbs.
  • Platform Size from 36" x 48" up to 48" x 60" are available
  • Turntables are fabricated from 1/2" Solid Steel Plate
  • Low Height: 15" - Raised Height: 39" - Vertical Travel: 24"
