P4 Floor Height Pallet Load Leveler - Roll-On Leveler
Ideal for manual pallet loading and unloading applications. Footswitch controls allow the operator to precisely position the load at the most convenient and comfortable for pallet loading or unloading. As a layer of boxes is removed from a pallet the operator can the adjust the platform height so the next layer moves into position for easy access. In pallet loading applications begin with an empty pallet on the platform raised to the full up position. As a each layer is added lower the platform and load the next layer.
Because the P4 lowers to the floor it can be fed with a hand pallet truck making it perfect for facilities where fork lifts or stacker are unavailable.

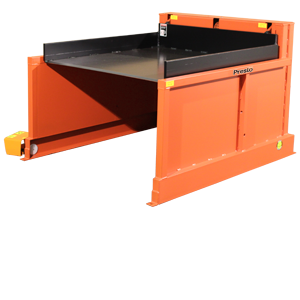

P4 Roll-On Leveler

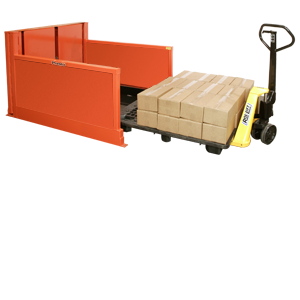

Load and Unload with a hand pallet jack

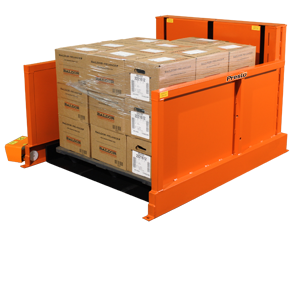

P4 Roll-On Leveler

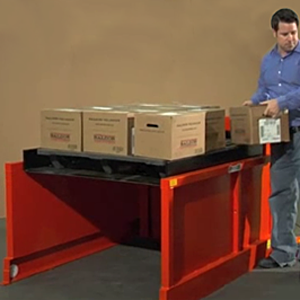

A single layer of boxes at a comfortable height

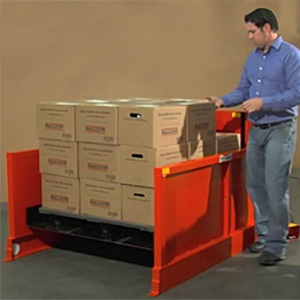

Platform lowered - top layer a comfortable height
| Model Number | Load Capacity | Raised Height | Lowered Height | Platform Size (WxD) | Dimensions W x L | Lifting Speed | Standard Motor | Voltage Phase/HZ | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|
|
Model
Number : P4 Series | |||||||||
|
Model
Number : P4-25-4448 |
Load
Capacity : 2500 lbs |
Raised
Height : 28" |
Lowered
Height : 3/8" |
Platform
Size (WxD) : 44 x 48" |
Dimensions
W x L: 51 x 61" |
Lifting
Speed : 22 sec |
Standard
Motor : 1 HP |
Voltage
Phase/HZ: 115/1/60 |
Shipping
Weight: 1485 lbs |
|
Model
Number : P4-25-5248 |
Load
Capacity : 2500 lbs |
Raised
Height : 28" |
Lowered
Height : 3/8" |
Platform
Size (WxD) : 52 x 48" |
Dimensions
W x L: 59 x 61" |
Lifting
Speed : 22 sec |
Standard
Motor : 1 HP |
Voltage
Phase/HZ: 115/1/60 |
Shipping
Weight: 1620 lbs |
|
Model
Number : P4-40-4448 |
Load
Capacity : 4000 lbs |
Raised
Height : 28" |
Lowered
Height : 3/8" |
Platform
Size (WxD) : 44 x 48" |
Dimensions
W x L: 51 x 61" |
Lifting
Speed : 30 sec |
Standard
Motor : 1 HP |
Voltage
Phase/HZ: 115/1/60 |
Shipping
Weight: 1650 lbs |
|
Model
Number : P4-40-5248 |
Load
Capacity : 4000 lbs |
Raised
Height : 28" |
Lowered
Height : 3/8" |
Platform
Size (WxD) : 52 x 48" |
Dimensions
W x L: 59 x 61" |
Lifting
Speed : 30 sec |
Standard
Motor : 1 HP |
Voltage
Phase/HZ: 115/1/60 |
Shipping
Weight: 1800 lbs |
OPTIONS & ACCESSORIES
ONE TOUCH AUTO-LEVELING
Unit can be set to raise or lower a preset increment at the touch of a button. This is especially helpful in dedicated applications where box dimensions remain constant from load to load.
Share this product
- Available in 2,500 or 4,000 lb. capacities
- Platform Sizes: 44" x 48" or 52" x 48"
- Internally mounted power unit - 1 HP - 115/1/60
- Photoelectric toe guard
- Choose footswitch or hand pendant control
- Other voltages and platform sizes available
- Can be moved easily with pallet jack
