P3 All-Around Airbag Automatic Load Leveler - Airbag Palletizer - Pallet Positioner

Load and unload pallets without stooping, stretching, or walking. The P3-All Around Pneumatic Load Leveler automatically maintains pallets at a constant level and comfortable working height as layers of boxes are added or removed.

Leveling is accomplished by a heavy-duty, reinforced rubber airbag that can handle loads up to 4500 lbs. After airbag charging with shop air is complete, the P3 All Around can be disconnected and moved to any location in the plant. Because the P3 is pneumatic, it can accommodate loads that vary substantially in weight (from 400 - 4500 lbs.) so one unit is versatile enough to work in several areas.

A turntable top with easy turning anti-friction bearings allow users to spin loads so they are always working from the near side without having to walk around the unit.

Automatically Positions Loads at a Convenient Height

P3 All-Around Automatic Load Leveler with Heavy-Duty Airbag

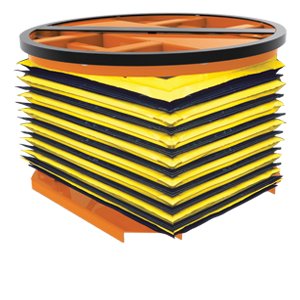

Shown with Optional Accordion Skirting

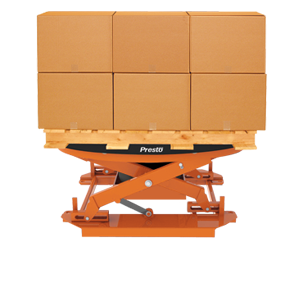

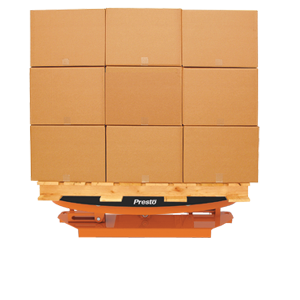

P3 Compressed When Fully Loaded

Loads Rises as Top Layer of Boxes is Removed

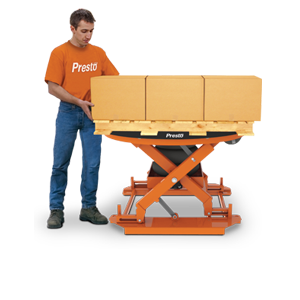

Load Continues to Rise Placing Bottom Layer at an Easily Accessible Height

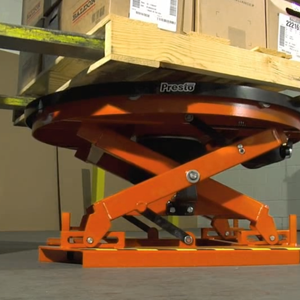

Load with a Fork Lift or Stacker

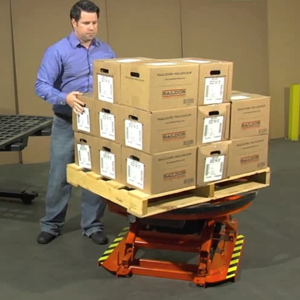

Turntable Allows Workers to Rotate Loads for Nearside Access

Quick Ship Eligible

Model Number	Load Capacity	Raised Height	Lowered Height	Overall Base L x W	Turntable Diameter	Standard Motor
Model Number : Pallet Positioner
Model Number : P3-AA	Load Capacity : 4500 lbs	Raised Height : 27 ¾"	Lowered Height : 9 ½"	Overall Base L x W : 36 x 36"	Turntable Diameter : 43 ⅝"	Standard Motor : 400 lbs

OPTIONS & ACCESSORIES

SOLID DISC COVER

Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.

FORK POCKET CASTER KIT

Mounts under unit in fork pockets to allow palletizer to be portable. A foot operated floor lock keeps the unit from rolling when in use.

LEVELING FEET

For use on uneven or damaged floors. 4 adjustable screw feet can be independently adjusted to ensure the palletizer is perfectly level.

PORTABILITY / SEMI-LIVE ARRANGEMENT

A variety of portability options are available including 4 casters, or semi-live with skid spotter

BELLOWS ACCORDIAN SKIRTING

Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.

ACCESS STEP

Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.

SQUARE TURNTABLE PLATFORMS

Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.

SPECIAL FINISHES / MATERIALS

Presto P3 Palletizers are available with a variety of custom finishes including special paint colors, chemical resistant coatings, two-part epoxies, and hot-dipped galvanizing.
