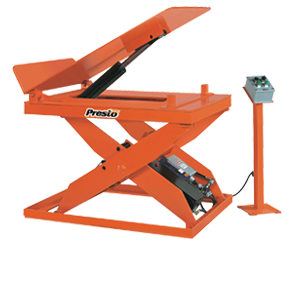

Hydraulic Scissor Lift & Tilt Table

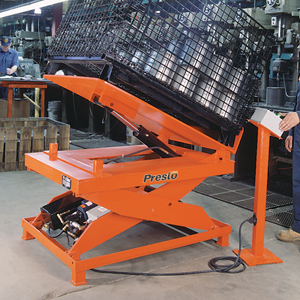

Lift height and tilt angle are controlled independently allowing operators to position loads precisely at the most comfortable height and working angle. Because the tilt cylinder is set into the lifting platform, the unit's lowered height is reduced.

Hydraulic Scissor Lift & Tilt Tables are available in 1,000, 2,000 or 4,000 capacities with 30˚ or 45˚ tilt angles.

Independently Control Height and Angle

Model Number	Load Capacity	Raised Height	Lowered Height	Degree of Tilt	Standard Base	Maximum Platform	Tilting Speed	Lifting Speed	Shipping Weight
Model Number : X3WT Series
Model Number : X3WT36-20	Load Capacity : 2000 lbs	Raised Height : 47 ½"	Lowered Height : 11 ½"	Degree of Tilt: 30°/45°	Standard Base : 36 x 48"	Maximum Platform : 60 x 60"	Tilting Speed: 42 sec	Lifting Speed: 8 sec	Shipping Weight: 1370 lbs
Model Number : X3WT36-40	Load Capacity : 4000 lbs	Raised Height : 47 ½"	Lowered Height : 11 ½"	Degree of Tilt: 30°/45°	Standard Base : 36 x 48"	Maximum Platform : 60 x 60"	Tilting Speed: 43 sec	Lifting Speed: 8 sec	Shipping Weight: 1420 lbs
Model Number : X4WT Series
Model Number : X4WT36-20	Load Capacity : 2000 lbs	Raised Height : 47 ½"	Lowered Height : 11 ½"	Degree of Tilt: 30°/45°	Standard Base : 48 x 48"	Maximum Platform : 72 x 60"	Tilting Speed: 42 sec	Lifting Speed: 8 sec	Shipping Weight: 1450 lbs
Model Number : X4WT36-40	Load Capacity : 4000 lbs	Raised Height : 47 ½"	Lowered Height : 11 ½"	Degree of Tilt: 30°/45°	Standard Base : 48 x 48"	Maximum Platform : 72 x 60"	Tilting Speed: 43 sec	Lifting Speed: 8 sec	Shipping Weight: 1500 lbs
Model Number : XLT Series
Model Number : XLT36-10	Load Capacity : 1000 lbs	Raised Height : 49 ¾"	Lowered Height : 13 ¾"	Degree of Tilt: 30°/45°	Standard Base : 24 x 48"	Maximum Platform : 48 x 48"	Tilting Speed: 20 sec	Lifting Speed: 15 sec	Shipping Weight: 1000 lbs
Model Number : XLT36-20	Load Capacity : 2000 lbs	Raised Height : 50 ¾"	Lowered Height : 14 ¾"	Degree of Tilt: 30°/45°	Standard Base : 24 x 48"	Maximum Platform : 50 x 50"	Tilting Speed: 30 sec	Lifting Speed: 15 sec	Shipping Weight: 1100 lbs
Model Number : XLT36-40	Load Capacity : 4000 lbs	Raised Height : 50 ¾"	Lowered Height : 14 ¾"	Degree of Tilt: 30°/45°	Standard Base : 24 x 48"	Maximum Platform : 50 x 50"	Tilting Speed: 44 sec	Lifting Speed: 15 sec	Shipping Weight: 1350 lbs

OPTIONS & ACCESSORIES

GRAVITY CONVEYOR TOPS

Roller conveyor mounted to platform transferring item on or off of lift. For integration with conveyor systems.

BALL TRANSFER TOPS

Platforms can be supplied with pneumatic ball transfers to allow for easy repositioning of items for access to all sides or transferring loads on to or off of lifts.
