Ring Floor-Mount Turntable

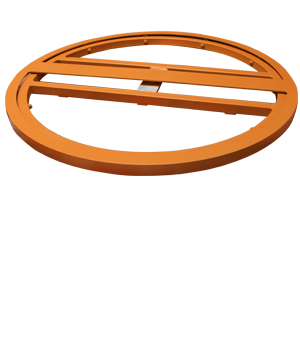

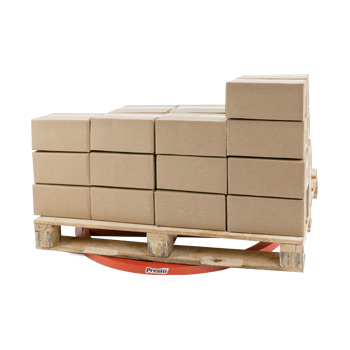

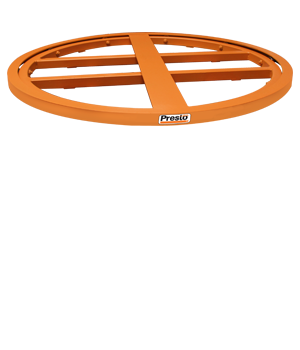

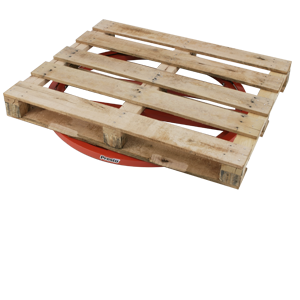

The Presto Ring Floor-Mount Turntable - RFT -43 is a two piece portable turntable that consists of an inner ring studded with anti-friction bearings and an outer ring which sits over it. It is ideal for manual pallet loading and unload as it allows workers to access all sides from a single location.

The 43 5/8" diameter accepts a wide variety of pallet sizes and configurations weighing up to 4,400 lbs..

With a total weight of just 70 lbs. the RFT can be easily relocated. It can even be mounted on a fixed height platform.

The Ring Floor-Mount Turntable must be fed by a fork lift or stacker. For a hand pallet truck accessible turntable choose the Presto Low-Profile Turntable - LPT.

Lightweight - Easy to Relocate Wherever It's Needed

Spin Loads for Easy Access to Boxes on All Sides

Sits Directly on the Floor

Works with a Variety of Pallet Styles and Sizes

Quick Ship Eligible

Model Number	Load Capacity	Lowered Height	Turntable Diameter	Shipping Weight
Model Number : Floor-Mount Turntable
Model Number : RFT	Load Capacity : 4400 lbs	Lowered Height : 2 ⅛	Turntable Diameter : 43 ⅝"	Shipping Weight: 70 lbs

OPTIONS & ACCESSORIES

SOLID DISC COVER

Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.

FORK POCKET CASTER KIT

Mounts under unit in fork pockets to allow palletizer to be portable. A foot operated floor lock keeps the unit from rolling when in use.

LEVELING FEET

For use on uneven or damaged floors. 4 adjustable screw feet can be independently adjusted to ensure the palletizer is perfectly level.

PORTABILITY / SEMI-LIVE ARRANGEMENT

A variety of portability options are available including 4 casters, or semi-live with skid spotter

BELLOWS ACCORDIAN SKIRTING

Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.

ACCESS STEP

Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.

SQUARE TURNTABLE PLATFORMS

Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.

SPECIAL FINISHES / MATERIALS

Presto P3 Palletizers are available with a variety of custom finishes including special paint colors, chemical resistant coatings, two-part epoxies, and hot-dipped galvanizing.
