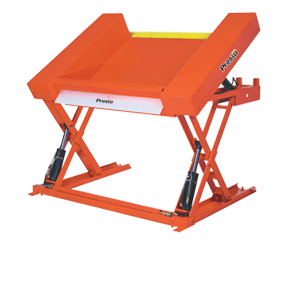

XZT Series Floor Level Lift & Tilt Tables

These hydraulic scissor lift tables in 2,000 or 4,000 lb. capacities lower flat to the floor allowing them to be loaded and unloaded with a hand pallet truck. They are ideal for facilities without fork lifts or stackers. They often increase worker productivity because workers can load and unload them without having to wait for a fork lift or stacker.

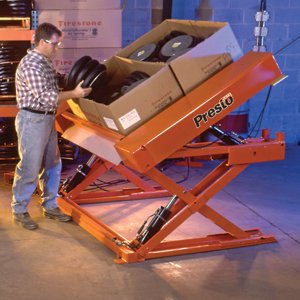

The combination lift and tilt feature allows loads to be positioned at the most comfortable height and angle.

Pan-Style Platform Lowers to Floor Level
Independently Control Height and Angle

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		Degree
of Tilt		Dimensions
W x L 		Platform
Size 		Lifting SpeedShipping
Weight
Model
Number : XZT44 Series
Model
Number : XZT44-20
Load
Capacity : 2000 lbs
Raised
Height : 33 ⅜"
Lowered
Height : 3/8"
Degree
of Tilt: 30°
Dimensions
W x L : 68 x 61"
Platform
Size : 44 x 48"
Lifting Speed: 44 x 48"
Shipping
Weight: 1255 lbs
Model
Number : XZT44-40
Load
Capacity : 4000 lbs
Raised
Height : 33 ½"
Lowered
Height : 1/2"
Degree
of Tilt: 30°
Dimensions
W x L : 68 x 61"
Platform
Size : 44 x 48"
Lifting Speed: 44 x 48"
Shipping
Weight: 1420 lbs
Model
Number : XZT50 Series
Model
Number : XZT50-20
Load
Capacity : 2000 lbs
Raised
Height : 33 ⅜"
Lowered
Height : 3/8"
Degree
of Tilt: 30°
Dimensions
W x L : 74 x 61"
Platform
Size : 50 x 48"
Lifting Speed: 50 x 48"
Shipping
Weight: 1420 lbs
Model
Number : XZT50-40
Load
Capacity : 4000 lbs
Raised
Height : 33 ½"
Lowered
Height : 1/2"
Degree
of Tilt: 30°
Dimensions
W x L : 74 x 61"
Platform
Size : 50 x 48"
Lifting Speed: 50 x 48"
Shipping
Weight: 1505 lbs

Share this product

  • Available in 2,000 or 4,000 lb. capacity
  • 33" vertical travel - 30º tilt
  • Yellow safety edge yields to protect worker during incidental contact
  • Standard pedestal control
  • Optional foot control available
  • One power unit controls lift & tilt
  • External 1 HP 115/1/60 power unit
  • Optional power units / 3 phase power available
  • Custom designs available
