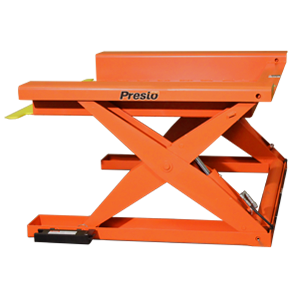

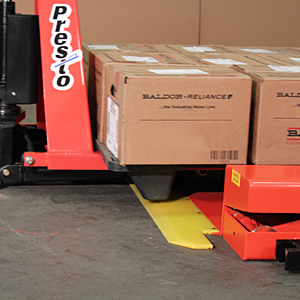

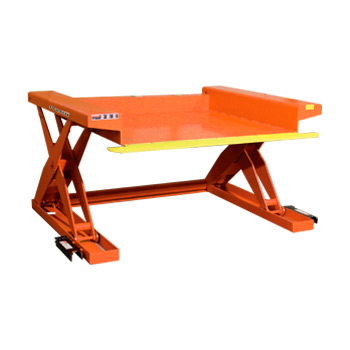

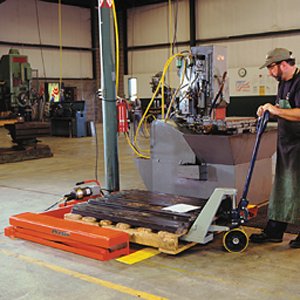

These industrial grade, hydraulic scissor lift tables feature a unique pan-style platform that sits only 3/8" above the floor when fully lowered. This low-profile design allows them to be loaded and unloaded by a hand pallet truck. Use them in facilities where fork lifts or stackers aren't available. An additional advantage of hand pallet truck accessibility is the opportunity for workers to function at their own pace without having to wait for a fork lift and certified operator to load the lifts for them.
With capacities up to 6,000 lbs. and multiple platform (pan) sizes, virtually any load can be accommodated.
OPTIONS & ACCESSORIES
- GRAVITY CONVEYOR TOPS
- BALL TRANSFER TOPS
- FORK POCKETS
- PORTABILITY / SEMI-LIVE ARRANGEMENT
- ACCORDIAN / BELLOWS SKIRT
- PIT MOUNTED UNITS
- OVERSIZED PLATFORMS
- 12V DC & 24V DC POWER UNITS
- SUPER CYCLE
- LOWER LEVEL LIMIT SWITCH
- VELOCITY FUSE
- UPPER TRAVEL LIMIT SWITCH
- WATER WASH DOWN MOTOR PACKAGE
- OPTIONAL POWER UNIT UPGRADES
GRAVITY CONVEYOR TOPS
Roller conveyor mounted to platform transferring item on or off of lift. For integration with conveyor systems.
BALL TRANSFER TOPS
Platforms can be supplied with pneumatic ball transfers to allow for easy repositioning of items for access to all sides or transferring loads on to or off of lifts.
FORK POCKETS
Allow lift to be easily picked up and moved with a fork lift.
PORTABILITY / SEMI-LIVE ARRANGEMENT
A variety of portability options are available including 4 casters, or semi-live with skid spotter
-fa00f795.webp)
ACCORDIAN / BELLOWS SKIRT
Vinyl pleated covering in yellow and black keeps debris from collecting under lift platform
PIT MOUNTED UNITS
Lifts can be configured for use in a pit. This allows the platform to sit flush with the floor when not in use to minimize obstructions.
OVERSIZED PLATFORMS
Platforms larger than standard are available. See chart above for MAX Platform dimensions.
12V DC & 24V DC POWER UNITS
Lifts can be configured for DC power with 12 volt or 24 volt motors.
SUPER CYCLE
For extremely high duty cycles lifts can be equipped with a Super Cycle Package that extends recommend time between maintenance to 200,000 cycles
LOWER LEVEL LIMIT SWITCH
prevents the lift table from traveling below a preset level.
VELOCITY FUSE
Prevents lift from falling should hydraulic hoses be accidentally severed.
UPPER TRAVEL LIMIT SWITCH
Prevents lift from traveling past a preset height.
WATER WASH DOWN MOTOR PACKAGE
NEMA 4 motor for use in wash down applications.
OPTIONAL POWER UNIT UPGRADES
Motor upgrades for increased lifting speed
Share this product
- Available in 2,000, 4,000 and 6,000 lb. capacities
- 35" vertical travel
- Loads can be accessed from 4 sides with minimum reach over
- External 1 HP 115/1/60 power unit
- Optional power units available
- Foot or hand-held control
- 6" flexible yellow safety toe guard
- Lifting eyes for safe positioning
- Custom designs available
