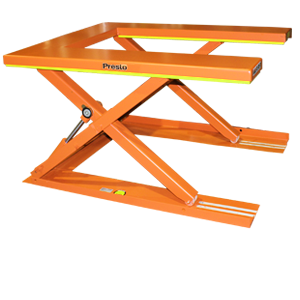

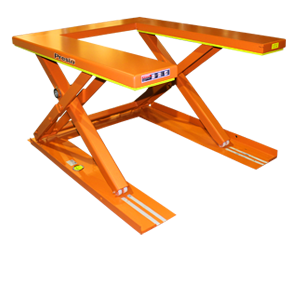

U-Lift Roll-In Leveler

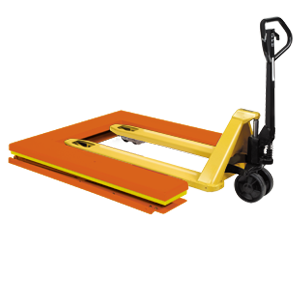

The U-Lift Roll-In Lift Table has been designed for feeding and offloading with an ordinary hand pallet truck.  With a pallet truck in the fully raised position, the load can be placed on the lift. The pallet rides over the outside platform beams while the pallet truck fits in between them.

This unique design gives workers 4 sided access to the loads with minimal to no reach-over. An electromechanical toeguard around the perimeter of the platform protects workers.



P4 Roll-On Leveler
Unique Platform Configuration Supports Loads at All 4 Corners
Hand Pallet Truck Forks Fit Inside of U-Shaped Platform

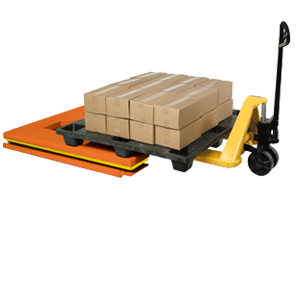

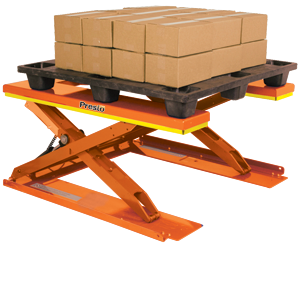

Pallet Rolls Over Platform With Pallet Truck Raised. Rests on Platform when Pallet Truck is Lowered
Unobstructed 4-Sided Access to Pallet Loads

Model
Number
Load
Capacity
Raised
Height
Lowered
Height
Platform
Size (WxD)
Lift
Beam I.D.
Lifting
Speed
Standard
Motor
Voltage
Phase/HZ
Shipping
Weight
Model
Number :
UL34-22
Load
Capacity :
2,200 lbs
Raised
Height :
34 ¾"
Lowered
Height :
3 ¼ "
Platform
Size (WxD) :
51" x 60 ½"
Lift
Beam I.D. :
29"
Lifting
Speed :
22 sec
Standard
Motor :
1 HP
Voltage
Phase/HZ:
115/1/60
Shipping
Weight:
700 lbs

Share this product

  • 2,200 Lb. Capacity
  • Raised Height: 34 3/4"
  • Lowered Height: 3 1/4"
  • Standard Footswitch Controls
  • Full Perimeter Toe Guard
  • Operates on standard 115V Power
