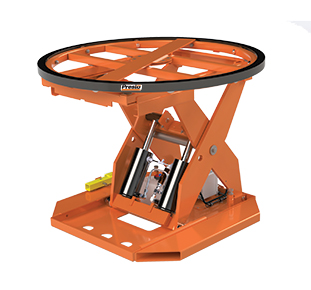

P3 Operator Controlled Load Leveler

This fully powered hydraulic version of our P3 Load Leveler is the ideal choice when precise load positioning is required or when load weights, pallet sizes or product dimension vary greatly and frequently.

Built-in Turntable Top
Operator Controlled Height Adjustment

Model
Number
Load
Capacity
Raised
Height
Lowered
Height
Base
L x W
Turntable
Diameter
Standard
Motor
Shipping
Weight
Model
Number :
Powered Pallet Positioner
Model
Number :
P3PH-24-20
Load
Capacity :
2,000 lbs
Raised
Height :
33 3⁄16"
Lowered
Height :
9 3⁄16"
Base
L x W :
40" x 36"
Turntable
Diameter :
43 ⅝
Standard
Motor :
1 HP
Shipping
Weight:
700 lbs
Model
Number :
P3PH-24-40
Load
Capacity :
4,000 lbs
Raised
Height :
33 3⁄16"
Lowered
Height :
9 3⁄16"
Base
L x W :
40" x 36"
Turntable
Diameter :
43 ⅝
Standard
Motor :
1 HP
Shipping
Weight:
760 lbs

OPTIONS & ACCESSORIES

SOLID DISC COVER
Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.

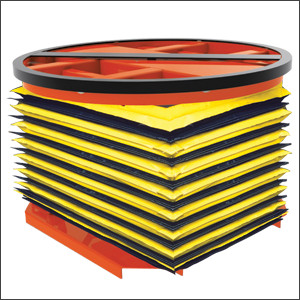

BELLOWS ACCORDIAN SKIRTING
Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.

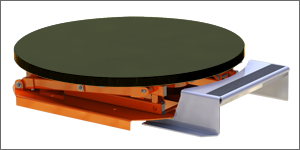

ACCESS STEP
Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.
SPECIAL FINISHES / MATERIALS
Presto P3 Palletizers are available with a variety of custom finishes including special paint colors, chemical resistant coatings, two-part epoxies, and hot-dipped galvanizing.



powered p3 solid

SOLID DISC COVER
Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.





BELLOWS ABellowsCCORDIAN SKIRTING
Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.



P3 Access StepACCESS STEP
Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.



SQUARE TURNTABLE PLATFROMS
Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.

Share this product

  • Available in 2,000 or 4,000 lb. Capacity
  • Foot Control
  • Operates on Standard 115V Power
  • Turntable Top for Nearside Loading and Unloading
  • Built-in Fork Pockets for Easy Relocation
