Hydraulic/Electromechanical Post Tables

These electric lift tables are excellent transporters and work positioners. Smooth lifting and lowering is achieved by a central lifting cylinder while guide posts provide stability for the platform even when fully extended. Lifting and lowering is via a 12 VDC linear actuator with pushbutton control.

Quick Ship Eligible

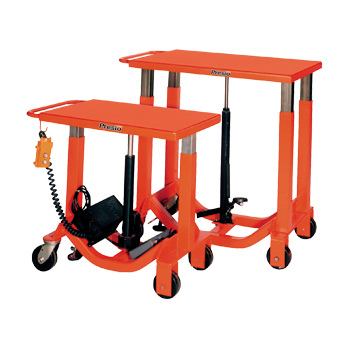

Available in 2 or 4 post styles

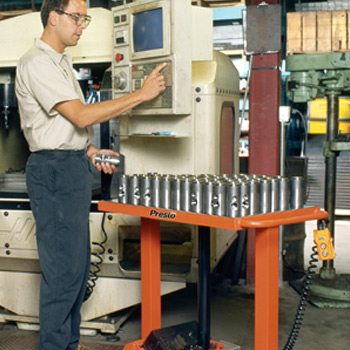

Ideal for CNC Machining Applications

Model
Number		Load
Capacity		Raised
Height		Lowered
Height		Platform
Size		Shipping
Weight
Model
Number: BP18 Series - Battery-Operated Tables
Model
Number: BP18-10
Load
Capacity: 1000 lbs
Raised
Height: 52"
Lowered
Height: 34"
Platform
Size: 24 x 36"
Shipping
Weight: 370 lbs
Model
Number: BP18-20
Load
Capacity: 2000 lbs
Raised
Height: 52"
Lowered
Height: 34"
Platform
Size: 24 x 36"
Shipping
Weight: 430 lbs
Model
Number: BP12 Series - Battery-Operated Tables
Model
Number: BP12-10
Load
Capacity: 1000 lbs
Raised
Height: 37"
Lowered
Height: 25"
Platform
Size: 24 x 36"
Shipping
Weight: 270 lbs
Model
Number: BP12-20
Load
Capacity: 2000 lbs
Raised
Height: 37"
Lowered
Height: 25"
Platform
Size: 24 x 36"
Shipping
Weight: 310 lbs

Share this product

  • 1000 or 2000 lbs capacity
  • 12 volt DC screw drive linear actuator
  • Foot operated floor lock
  • Push-button control on BP Series
  • Integrated push/pull handle
  • 2 fixed and 2 swivel polyurethane wheels
Download - General Catalog
