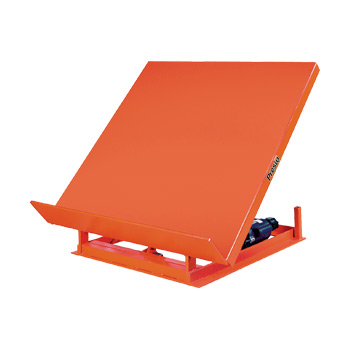

Wide Base Tilt Tables WT Series

The 36" wide base provides rigidity and stability making these tilt tables ideal for positioning larger containers or loads where greater side support is required. Platform sizes up to 60" x 60" are available.

These tilters can be mounted on the floor on fixed height stands or even to a scissor lift table.

Tilt angles of 30˚, 45˚, 60˚ and 90˚ are available.

WT Series Wide Base Pneumatic Tilt Table

Model
Number 		Tilt
Capacity 		Low
Height 		Degree
of Tilt 		Standard
Base 		Standard
Platform 		Maximum
Platform		Lifting
Speed 		Shipping
Weight
Model
Number : WT30/45 Series
Model
Number : WT30/45-20
Tilt
Capacity : 2000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 30°/45°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 19/29 sec
Shipping
Weight: 590 lbs
Model
Number : WT30/45-40
Tilt
Capacity : 4000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 30°/45°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 20/30 sec
Shipping
Weight: 610 lbs
Model
Number : WT30/45-60
Tilt
Capacity : 6000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 30°/45°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 29/39 sec
Shipping
Weight: 630 lbs
Model
Number : WT60 Series
Model
Number : WT60-20
Tilt
Capacity : 2000 lbs
Low
Height : 8 ½"
Degree
of Tilt : 60°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 40 sec
Shipping
Weight: 730 lbs
Model
Number : WT60-40
Tilt
Capacity : 4000 lbs
Low
Height : 8 ½"
Degree
of Tilt : 60°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 42 sec
Shipping
Weight: 750 lbs
Model
Number : WT60-60
Tilt
Capacity : 6000 lbs
Low
Height : 8 ½"
Degree
of Tilt : 60°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 55 sec
Shipping
Weight: 770 lbs
Model
Number : WT90 Series
Model
Number : WT90-20
Tilt
Capacity : 2000 lbs
Low
Height : 8 ½"
Degree
of Tilt : 90°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 60 sec
Shipping
Weight: 730 lbs
Model
Number : WT90-40
Tilt
Capacity : 4000 lbs
Low
Height : 8 ½"
Degree
of Tilt : 90°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 64 sec
Shipping
Weight: 750 lbs
Model
Number : WT90-60
Tilt
Capacity : 6000 lbs
Low
Height : 8 ½"
Degree
of Tilt : 90°
Standard
Base : 36 x 42"
Standard
Platform : 36 x 42"
Maximum
Platform: 60 x 60"
Lifting
Speed : 83 sec
Shipping
Weight: 770 lbs

Share this product

  • 2,000,  4,000 & 6,000 lb. capacities
  • Available with 30º, 45º, 60º, and 90º tilt
  • Wide-Base models have an internal 1 HP 115/1/60 power unit
  • Optional power units available
  • Powered down cylinders on WT60 and WT90 series
  • Custom platforms available •
  • 8" standard lip on WT30 and WT45 Series
  • 12" lip standard on WT60 and WT90 Series
  • Extended lips - up to 24" are available
  • Can be mounted to the floor, on stands, or on scissor lifts.
  • Hand-held control standard
  • Optional foot-control available
  • Custom platforms available
