TT Series Standard Tilt Tables

These fixed height tilters can be mounted on legs, workbenches or directly on the floor. They are ideal for odd shaped or sized containers or odd loads. They are also useful for positioning items for wiring, assembly and fabricating applications.

TT Series Fixed Height Tilters are available with 30˚, 45˚ or 60˚ of tilt and can handle loads up to 6,000 lbs.

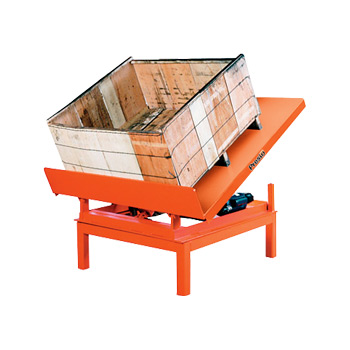

TT30 Series Tilter Used for Parts Feeding

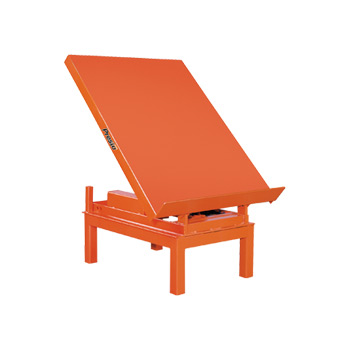

TT60 Series Tilter Mounted to Fixed Height Platform

Model
Number 		Tilt
Capacity 		Low
Height 		Degree
of Tilt 		Standard
Base 		Standard
Platform 		Maximum
Platform		Lifting
Speed 		Shipping
Weight
Model
Number : TT30 Series
Model
Number : TT30-10
Tilt
Capacity : 1000 lbs
Low
Height : 6 ½"
Degree
of Tilt : 30°
Standard
Base : 24 x 30"
Standard
Platform : 24 x 36"
Maximum
Platform: 36 x 48"
Lifting
Speed : 15 sec
Shipping
Weight: 310 lbs
Model
Number : TT30-15
Tilt
Capacity : 1500 lbs
Low
Height : 6 ½"
Degree
of Tilt : 30°
Standard
Base : 24 x 30"
Standard
Platform : 24 x 36"
Maximum
Platform: 36 x 48"
Lifting
Speed : 15 sec
Shipping
Weight: 325 lbs
Model
Number : TT30-20
Tilt
Capacity : 2000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 30°
Standard
Base : 24 x 36"
Standard
Platform : 24 x 36"
Maximum
Platform: 50 x 50"
Lifting
Speed : 10 sec
Shipping
Weight: 530 lbs
Model
Number : TT30-40
Tilt
Capacity : 4000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 30°
Standard
Base : 24 x 36"
Standard
Platform : 24 x 36"
Maximum
Platform: 50 x 50"
Lifting
Speed : 11 sec
Shipping
Weight: 520 lbs
Model
Number : TT30-60
Tilt
Capacity : 6000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 30°
Standard
Base : 24 x 36"
Standard
Platform : 24 x 36"
Maximum
Platform: 50 x 50"
Lifting
Speed : 14 sec
Shipping
Weight: 530 lbs
Model
Number : TT45 Series
Model
Number : TT45-10
Tilt
Capacity : 1000 lbs
Low
Height : 6 ½"
Degree
of Tilt : 45°
Standard
Base : 24 x 30"
Standard
Platform : 24 x 36"
Maximum
Platform: 36 x 48"
Lifting
Speed : 22 sec
Shipping
Weight: 310 lbs
Model
Number : TT45-15
Tilt
Capacity : 1500 lbs
Low
Height : 6 ½"
Degree
of Tilt : 45°
Standard
Base : 24 x 30"
Standard
Platform : 24 x 36"
Maximum
Platform: 36 x 48"
Lifting
Speed : 22 sec
Shipping
Weight: 325 lbs
Model
Number : TT45-20
Tilt
Capacity : 2000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 45°
Standard
Base : 24 x 36"
Standard
Platform : 24 x 36"
Maximum
Platform: 50 x 50"
Lifting
Speed : 15 sec
Shipping
Weight: 510 lbs
Model
Number : TT45-40
Tilt
Capacity : 4000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 45°
Standard
Base : 24 x 36"
Standard
Platform : 24 x 36"
Maximum
Platform: 50 x 50"
Lifting
Speed : 16 sec
Shipping
Weight: 520 lbs
Model
Number : TT45-60
Tilt
Capacity : 6000 lbs
Low
Height : 7 ½"
Degree
of Tilt : 45°
Standard
Base : 24 x 36"
Standard
Platform : 24 x 36"
Maximum
Platform: 50 x 50"
Lifting
Speed : 20 sec
Shipping
Weight: 530 lbs
Model
Number : TT60 Series
Model
Number : TT60-10
Tilt
Capacity : 1000 lbs
Low
Height : 6 ½"
Degree
of Tilt : 60°
Standard
Base : 24 x 30"
Standard
Platform : 24 x 36"
Maximum
Platform: 36 x 48"
Lifting
Speed : 30 sec
Shipping
Weight: 310 lbs
Model
Number : TT60-15
Tilt
Capacity : 1500 lbs
Low
Height : 6 ½"
Degree
of Tilt : 60°
Standard
Base : 24 x 30"
Standard
Platform : 24 x 36"
Maximum
Platform: 36 x 48"
Lifting
Speed : 50 sec
Shipping
Weight: 325 lbs

Share this product

  • 1,000, 1,500, 2,000, 4,000 or 6,000 lb. capacities
  • 30˚, 45˚ or 60˚ Tilt Angles
  • Internal 1/2 HP 115/1/60 power unit
  • Optional power units available
  • Powered down cylinders on TT60
  • Custom platforms available
  • 8" lip on TT30 and TT45 Series, 12" lip on TT60 Series
  • Extended lips up to 24" are available
  • Hand-held pendant control
