Pneumatic Tilt Table AT Series

Pneumatic Tilt Tables can be mounted directly to the floor or on an optional stand.

Tilt is achieved by a heavy-duty airbag.

Fourteen models are available with capacities from 1,000 - 6,000 pounds and tilting angles of 35˚ or 45˚.

Equipped with a restraining chain to prevent over travel.

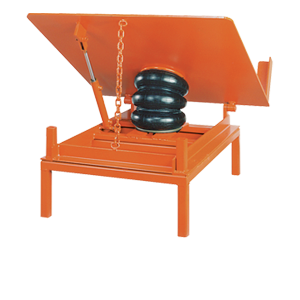

AT Series Pneumatic Tilt Table on Optional Fixed Height Stand

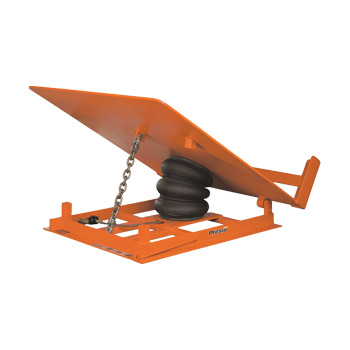

AT Series Pneumatic Tilt Table

Model
Number 		Load
Capacity 		Low
Height 		Base
Size W x L 		Platform
Size W x L		Shipping
Weight
Model
Number : AT10 Series
Model
Number : AT10-3648
Load
Capacity : 1000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 36 x 48"
Shipping
Weight: 640 lbs
Model
Number : AT10-4848
Load
Capacity : 1000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 48"
Shipping
Weight: 700 lbs
Model
Number : AT10-4856
Load
Capacity : 1000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 56"
Shipping
Weight: 750 lbs
Model
Number : AT10-4860
Load
Capacity : 1000 lbs
Low
Height :  7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 60"
Shipping
Weight: 770 lbs
Model
Number : AT20 Series
Model
Number : AT20-3648
Load
Capacity : 2000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 36 x 48"
Shipping
Weight: 690 lbs
Model
Number : AT20-4848
Load
Capacity : 2000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 48"
Shipping
Weight: 770 lbs
Model
Number : AT20-4856
Load
Capacity : 2000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 56"
Shipping
Weight: 835 lbs
Model
Number : AT20-4860
Load
Capacity : 2000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 60"
Shipping
Weight: 855 lbs
Model
Number : AT40 Series
Model
Number : AT40-4848
Load
Capacity : 4000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 48"
Shipping
Weight: 795 lbs
Model
Number : AT40-4856
Load
Capacity : 4000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 56"
Shipping
Weight: 850 lbs
Model
Number : AT40-4860
Load
Capacity : 4000 lbs
Low
Height : 7"
Base
Size W x L : 36 x 48"
Platform
Size W x L: 48 x 60"
Shipping
Weight: 880 lbs
Model
Number : AT60 Series
Model
Number : AT60-4848
Load
Capacity : 6000 lbs
Low
Height : 7"
Base
Size W x L : 48 x 48"
Platform
Size W x L: 48 x 48"
Shipping
Weight: 890 lbs
Model
Number : AT60-4856
Load
Capacity : 6000 lbs
Low
Height : 7"
Base
Size W x L : 48 x 48"
Platform
Size W x L: 48 x 56"
Shipping
Weight: 970 lbs
Model
Number : AT60-4860
Load
Capacity : 6000 lbs
Low
Height : 7"
Base
Size W x L : 48 x 48"
Platform
Size W x L: 48 x 60"
Shipping
Weight: 1040 lbs

Share this product

  • Available in 1,000, 2,000, 4,000 or 6,000 lb. capacities
  • 35˚ and 45˚ tilt angle
  • Platform sizes from 36" x 48" up to 48" x 60"
  • Lowered Height 7"
  • Standard Pedestal Control - Foot Control Optional
  • Operates on shop air, no electrical power is required.
  • Lifetime Warranty on Actuator
  • Air Requirements: 80 PSI @ 30 CFM
