ZRT Series Floor Level Container Tilters

Tilt containers weighing up to 4,000 lbs. to any angle between 0˚ and 89˚ for improved access without bending and stretching. Floor level design allows containers to be placed on the tilter with a hand pallet truck making them perfect for facilities that don't have a fork lift or stacker.

An additional advantage of hand pallet truck accessibility is the opportunity for workers to function at their own pace without having to wait for a fork lift and certified operator to load the lifts for them.

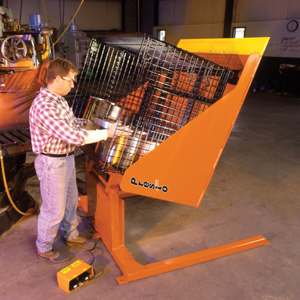

Position Baskets at any Angle up to 89˚

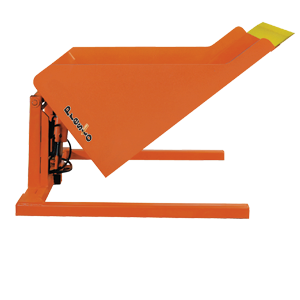

ZRT Series Tilter - Pan-Style Platform can be Fed with a Hand Pallet Truck

Model
Number 		Tilt
Capacity 		Low
Height 		Degree
of Tilt 		Dimensions
W x L 		Platform
Size 		Lifting
Speed 		Shipping
Weight
Model
Number : ZRT Series
Model
Number : ZRT50-20
Tilt
Capacity : 2000 lbs
Low
Height : 3/8"
Degree
of Tilt : 89°
Dimensions
W x L : 59 x 67"
Platform
Size : 50 x 48"
Lifting
Speed : 26 sec
Shipping
Weight: 1245 lbs
Model
Number : ZRT50-40
Tilt
Capacity : 4000 lbs
Low
Height : 3/8"
Degree
of Tilt : 89°
Dimensions
W x L : 59 x 67"
Platform
Size : 50 x 48"
Lifting
Speed : 28 sec
Shipping
Weight: 1295 lbs

Share this product

  • Available in 2,000 or 4,000 lb. capacities
  • Custom platform sizes
  • Internal 1 HP 115/1/60 power unit
  • Floor level at lowered height
  • Pallet jack accessible
  • 50" I.D. x 30-1/8" side height
  • Optional power units available
  • 6" flexible safety toe guard
  • Hand-control pendant
  • Custom designs available
