TZ Series 45 Degree Tilters

TZ Series Floor Level Tilters position container loads at any angle between 0˚ and 45˚. Floor level design allows containers to be placed on the tilter with a hand pallet truck.

Hand pallet truck accessibility makes them perfect for facilities without a fork lift or stacker. It also improves efficiency by allowing workers to load and unload containers themselves rather than wait for access to a fork lift and/or operator.

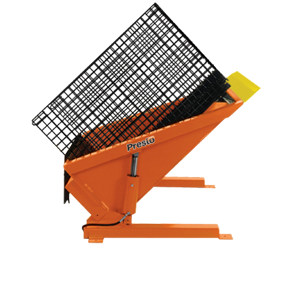

TZ Series 45˚ Container Tilter

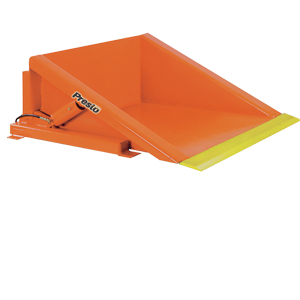

Pan-Style Platform Lowers to Floor for loading with a hand Pallet truck

Model
Number 		Tilt
Capacity 		Low
Height 		Degree
of Tilt 		Dimensions
W x L 		Platform
Size 		Lifting
Speed 		Shipping
Weight
Model
Number : TZ44 Series
Model
Number : TZ44-20
Tilt
Capacity : 2000 lbs
Low
Height : 3/8"
Degree
of Tilt : 45°
Dimensions
W x L : 55 x 60 ½"
Platform
Size : 44 x 48"
Lifting
Speed : 30 sec
Shipping
Weight: 1200 lbs
Model
Number : TZ44-40
Tilt
Capacity : 4000 lbs
Low
Height : 3/8"
Degree
of Tilt : 45°
Dimensions
W x L : 55 x 60 ½"
Platform
Size : 44 x 48"
Lifting
Speed : 32 sec
Shipping
Weight: 1155 lbs
Model
Number : TZ44-60
Tilt
Capacity : 6000 lbs
Low
Height : 1/2"
Degree
of Tilt : 45°
Dimensions
W x L : 55 x 60 ½"
Platform
Size : 44 x 48"
Lifting
Speed : 36 sec
Shipping
Weight: 1235 lbs
Model
Number : TZ50 Series
Model
Number : TZ50-20
Tilt
Capacity : 2000 lbs
Low
Height : 3/8"
Degree
of Tilt : 45°
Dimensions
W x L : 63 x 60 ½"
Platform
Size : 50 x 48"
Lifting
Speed : 30 sec
Shipping
Weight: 1215 lbs
Model
Number : TZ50-40
Tilt
Capacity : 4000 lbs
Low
Height : 3/8"
Degree
of Tilt : 45°
Dimensions
W x L : 63 x 60 ½"
Platform
Size : 50 x 48"
Lifting
Speed : 34 sec
Shipping
Weight: 1240 lbs
Model
Number : TZ50-60
Tilt
Capacity : 6000 lbs
Low
Height : 1/2"
Degree
of Tilt : 45°
Dimensions
W x L : 63 x 60 ½"
Platform
Size : 50 x 48"
Lifting
Speed : 38 sec
Shipping
Weight: 1340 lbs

Share this product

  • 2,000 - 4,000 lb capacity
  • 44" x 48" or 50" x 48" platforms (pans) available
  • Floor level at lowered height
  • External 1 HP 115/1/60 power unit
  • Optional power units available
  • Hand-control with magnetic back
  • 6" flexible safety toe guard
