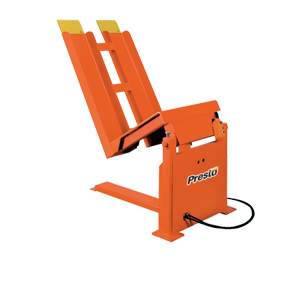

SRT Series Stationary Container Tilters

For dedicated container tilting applications, these stationary tilters are the perfect choice. Wide fork channels allow containers to be placed on them with a fork lift, stacker or even hand pallet truck.

Hand pendant control allows worker to tilt to any angle between 0˚ and 89˚ for easy access to container contents - even those at the bottom.

Choose from 2,000 or 4,000 lb. capacity.

Tilt Loads up to 89˚
Wide Fork Channels for Feeding with Lift Truck, Stacker or Hand Pallet Truck

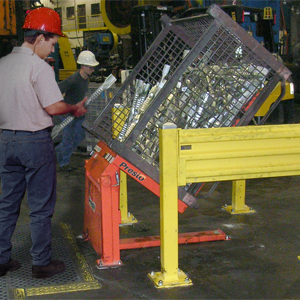

Metal Blanks Tilted for Easy Access

Model
Number 		Tilt
Capacity 		Low
Height 		Degree
of Tilt 		Dimensions
W x L 		Fork
Length 		Lifting
Speed 		Shipping
Weight
Model
Number : SRT Series
Model
Number : SRT20
Tilt
Capacity : 2000 lbs
Low
Height : 3/8"
Degree
of Tilt : 89°
Dimensions
W x L : 33 x 58"
Fork
Length : 40"
Lifting
Speed : 23 sec
Shipping
Weight: 885 lbs
Model
Number : SRT40
Tilt
Capacity : 4000 lbs
Low
Height : 3/8"
Degree
of Tilt : 89°
Dimensions
W x L : 33 x 58"
Fork
Length : 40"
Lifting
Speed : 24 sec
Shipping
Weight: 900 lbs

Share this product

  • 2,000 and 4,000 lb. capacities
  • Position containers at any angle from 0˚ - 89˚
  • Internal 1 HP 115/1/60 power unit
  • Pendant control with magnetic backing for mounting
  • Optional foot-control available
  • Compact frame design
  • Designed to be lagged down to the floor
  • Fork channels for loading with a pallet jack or forklift
  • Flexible safety toe guards on forks
  • Custom design modifications available
