PT/PTS Series Portable Container Tilters

These portable, battery powered container tilters go anywhere they are needed. Choose them for applications that require sharing between multiple users or work cells, or where workers need to pick up and return containers to and from staging areas. Choose a Non-Straddle unit for use with most standard containers or a Straddle unit for use with containers that have reinforcing leg bars.

Available in 2,000 or 4,000 lb. capacities. All PT and PTS Container Tilters can tilt containers to any angle between 0˚ and 85˚.

PT Series Tilter - Position Containers at Angles up to 85˚

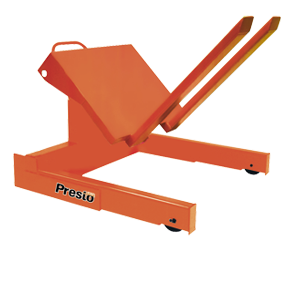

PT-Series Tilter Portable Container Tilter

Tilt to any angle from 0 to 85˚

Straddle Configuration

Hand pendant controls mount via magnet

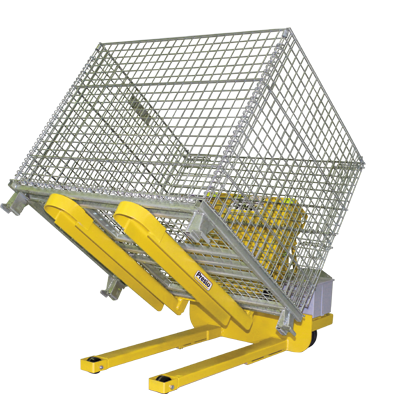

Fully tilted to 85˚

Rear of unit with battery box

Model Number	Tilt Capacity	Low Height	Degree of Tilt	Dimensions W x L	Fork Length	Fork O.D.	Lifting Speed	Shipping Weight
Model Number : PT Series - Non-Straddle
Model Number : PT-20	Tilt Capacity : 2000 lbs	Low Height : 3 ½"	Degree of Tilt : 85°	Dimensions W x L : 34 x 54"	Fork Length : 40"	Fork O.D.: 24 ½"	Lifting Speed : 37 sec	Shipping Weight: 700 lbs
Model Number : PT-40	Tilt Capacity : 4000 lbs	Low Height : 3 ½"	Degree of Tilt : 85°	Dimensions W x L : 34 x 61"	Fork Length : 40"	Fork O.D.: 26 ⅛"	Lifting Speed : 30 sec	Shipping Weight: 900 lbs
Model Number : PTS Series - 50" I.D. Straddle
Model Number : PTS50-20	Tilt Capacity : 2000 lbs	Low Height : 3 ½"	Degree of Tilt : 85°	Dimensions W x L : 57 x 54"	Fork Length : 40"	Fork O.D.: 24"	Lifting Speed : 37 sec	Shipping Weight: 950 lbs
Model Number : PTS50-40	Tilt Capacity : 4000 lbs	Low Height : 3 ½"	Degree of Tilt : 85°	Dimensions W x L : 57 x 58"	Fork Length : 40"	Fork O.D.: 25"	Lifting Speed : 30 sec	Shipping Weight: 1150 lbs
