M100-M400 Series Manual Lift Stackers

Designed to easily handle all types of lifting tasks from transporting dies and molds to stacking small skids. These manual foot pump stackers are compact enough to operate in confined or congested spaces - most models will fit easily through standard doorways.

Models can be equipped with forks or solid platforms.

Fork equipped models come with either straddle or non-straddle bases.

Most models are part of our Always-in-Stock program and are available for shipment within one week of order.

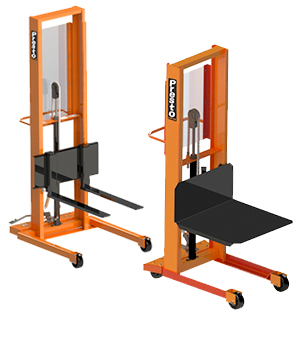

Manual Stackers with Foot Pump Lift

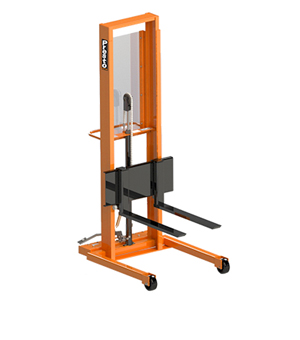

Manual Stacker with Forks

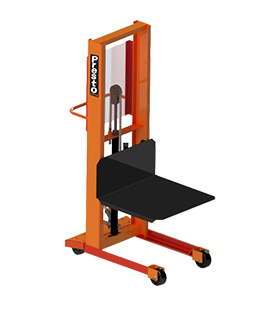

Manual Stacker with Plafform

Model
Number 		Load
Capacity 		Load
Center 		Raised
Height 		Low
Height 		Dimensions
H x W x L 		Base Legs
I.D./O.D. 		Wheel Dia.
Front/Rear 		Shipping
Weight
Model
Number : M100 Series - Platform (24"W x 24"L)
Model
Number : M152
Load
Capacity : 1000 lbs
Load
Center : 15"
Raised
Height : 52"
Low
Height : 5 ¼"
Dimensions
H x W x L : 66 x 25 x 38"
Base Legs
I.D./O.D. : 15" / 21"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 270 lbs
Model
Number : M166
Load
Capacity : 1000 lbs
Load
Center : 15"
Raised
Height : 66"
Low
Height : 5 ¼"
Dimensions
H x W x L : 80 x 25 x 38"
Base Legs
I.D./O.D. : 15" / 21"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 290 lbs
Model
Number : M178
Load
Capacity : 1000 lbs
Load
Center : 15"
Raised
Height : 78"
Low
Height : 5 ¼"
Dimensions
H x W x L : 92 x 25 x 38"
Base Legs
I.D./O.D. : 15" / 21"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 300 lbs
Model
Number : M300 Series - Platform (32"W x 30"L)
Model
Number : M352
Load
Capacity : 1000 lbs
Load
Center : 18"
Raised
Height : 52"
Low
Height : 5 ¼"
Dimensions
H x W x L : 66 x 33 x 44"
Base Legs
I.D./O.D. : 24" / 30"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 350 lbs
Model
Number : M366
Load
Capacity : 1000 lbs
Load
Center : 18"
Raised
Height : 66"
Low
Height : 5 ¼"
Dimensions
H x W x L : 80 x 33 x 44"
Base Legs
I.D./O.D. : 24" / 30"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 370 lbs
Model
Number : M378
Load
Capacity : 1000 lbs
Load
Center : 18"
Raised
Height : 78"
Low
Height : 5 ¼"
Dimensions
H x W x L : 92 x 33 x 44"
Base Legs
I.D./O.D. : 24" / 30"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 390 lbs
Model
Number : M200 Series - Adjustable 25" Forks (Non-Straddle)
Model
Number : M252
Load
Capacity : 1000 lbs
Load
Center : 15"
Raised
Height : 52"
Low
Height : 5 ¼"
Dimensions
H x W x L : 66 x 27 x 42"
Base Legs
I.D./O.D. : 15" / 21"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 340 lbs
Model
Number : M266
Load
Capacity : 1000 lbs
Load
Center : 15"
Raised
Height : 66"
Low
Height : 5 ¼"
Dimensions
H x W x L : 80 x 27 x 42"
Base Legs
I.D./O.D. : 15" / 21"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 360 lbs
Model
Number : M278
Load
Capacity : 1000 lbs
Load
Center : 15"
Raised
Height : 78"
Low
Height : 5 ¼"
Dimensions
H x W x L : 92 x 27 x 42"
Base Legs
I.D./O.D. : 15" / 21"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 390 lbs
Model
Number : M400 Series - Adjustable 30" Forks (Straddle)
Model
Number : M452
Load
Capacity : 1000 lbs
Load
Center : 18"
Raised
Height : 50"
Low
Height : 3 ¼"
Dimensions
H x W x L : 66 x 33 x 49"
Base Legs
I.D./O.D. : 26" / 32"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 370 lbs
Model
Number : M466
Load
Capacity : 1000 lbs
Load
Center : 18"
Raised
Height : 64"
Low
Height : 3 ¼"
Dimensions
H x W x L : 80 x 33 x 49"
Base Legs
I.D./O.D. : 26" / 32"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 390 lbs
Model
Number : M478
Load
Capacity : 1000 lbs
Load
Center : 18"
Raised
Height : 76"
Low
Height : 3 ¼"
Dimensions
H x W x L : 92 x 33 x 49"
Base Legs
I.D./O.D. : 26" / 32"
Wheel Dia.
Front/Rear : 5" / 4"
Shipping
Weight: 410 lbs

OPTIONS & ACCESSORIES

WHEELS & CASTERS
Standard wheels are phenolic plastic. Optional wheels are available. Consult Sales for details.
REVERSED / INVERTED FORKS
Ideal for overhead installation. Forks can be modified in an inverted position which effectively increases the stackers lowered height and raised height.
SLIP-ON PLATFORMS
Slip on platformPlatforms slide on over existing forks. 3 Sizes are available - 24" x 24" for 15" Load Centers, 32" x 30" for 18" and 20" Load Centers and 40" x 36" for 24" Load Centers
MODIFIED PLATFORMS
B600 Special Slotted PlatformCustomized for a specific application, modified platforms include extended lengths or widths, cutouts, special shapes, floor level access, bridge plates, non-skid surfaces and more.
EXTENDED BACKPLATE
Wide Back PlateWider of higher backplates to accommodate special lifting requirements.
BOOM WITH HOOK
Boom with HookFork carriages can be equipped with a boom and hook for lifting and suspending loads with chains or lifting straps.
RAM
A Cylindrical Ram mounted to the fork carriage for handling rolls, and coils. Rams up to 30" long available.
DRUM GRABBER
DG-30 Drum GrabberAutomatically grabs 30 or 55 gallon drums for hanling and stacking in the vertical position. Mounts on the back plate of any straddle base, fork model stacker. Parrot beak mechanism works with steel or fiber drums.
ROLLER BED
Roller BedExcellent for transferring heavy object to or from a stacker with minimum effort. 3" rollers can be oriented front-to-back or side-to-side. Maximum capacity is 1,000 lbs. Requires a 24" load center.
P-6 DIE PULLER
Roller bed equipped with a hand operated winch with cable and hook. Maximum Capacity is 1,000 lbs. Requires a 24" Load Center
FIRE RESISTANT HYDRAULIC FLUIDS
Water and glycol fluids are fire resistant, non-explosive and non-toxic. Approved by Factory Mutual Insurance Engineering Laboratories.
HEIGHT
Standard lift heights can be decreased to meet special requirements.

Wheels and Casters

WHEELS & CASTERS
Standard wheels are phenolic plastic. Optional wheels are available.
Consult Sales for details.





Upside Down ForkREVERSED / INVERTED FORKS
Ideal for overhead installation. Forks can be modified in an inverted position which effectively increases the stackers lowered height and raised height.



SLIP-ON PLATFORMS
Slip on platformPlatforms slide on over existing forks. 3 Sizes are available - 24" x 24" for 15" Load Centers, 32" x 30" for 18" and 20" Load Centers and 40" x 36" for 24" Load Centers



MODIFIED PLATFORMS
B600 Special Slotted PlatformCustomized for a specific application, modified platforms include extended lengths or widths, cutouts, special shapes, floor level access, bridge plates, non-skid surfaces and more.





EXTENDED BACKPLATE
Wide Back PlateWider of higher backplates to accommodate special lifting requirements.





BOOM WITH HOOK
Boom with HookFork carriages can be equipped with a boom and hook for lifting and suspending loads with chains or lifting straps.



RAM
RamA Cylindrical Ram mounted to the fork carriage for handling rolls, and coils. Rams up to 30" long available.



DRUM GRABBER DG-30
Drum GrabberAutomatically grabs 30 or 55 gallon drums for hanling and stacking in the vertical position. Mounts on the back plate of any straddle base, fork model stacker. Parrot beak mechanism works with steel or fiber drums.



ROLLER BED
Roller BedExcellent for transferring heavy object to or from a stacker with minimum effort. 3" rollers can be oriented front-to-back or side-to-side. Maximum capacity is 1,000 lbs. Requires a 24" load center.



P-6 DIE PULLER
Die PullerRoller bed equipped with a hand operated winch with cable and hook. Maximum Capacity is 1,000 lbs. Requires a 24" Load Center



Photo To Come

FIRE RESISTANT HYDRAULIC FLUIDS
Water and glycol fluids are fire resistant, non-explosive and non-toxic. Approved by Factory Mutual Insurance Engineering Laboratories.



Photo To ComeHEIGHT
Standard lift heights can be decreased to meet special requirements.

Share this product

  • Adjustable solid steel forks
  • Fork adjustment: 6-1/2" to 26-1/2" O.D.
  • Fork back height: Hand & Foot straddle models - 14" Foot non-straddle models - 12"
  • Optional slip-on platform available
  • Leaf-type chain - 8250 lb yield point
  • Approximate lift stroke: Hand - 1/2" per stroke Foot - 1-1/8" per stroke
  • Clear Polycarbonate (Impact Resistant) Screen
  • Foot-operated floor lock
  • High-impact, floor-saving phenolic wheels
