WP/WPS Work Positioners

These low mast stackers are the ultimate multifunction devices. Use them to transport, to place loads on elevated surfaces or as portable lift tables. Choose non-straddle for use with open bottom pallet and skids or straddle style for use with any type of pallet or skid. An optional slip on platform is for use as a worksurface of use with non-palletized loads.

Tiller handle steering provides excellent maneuverability.

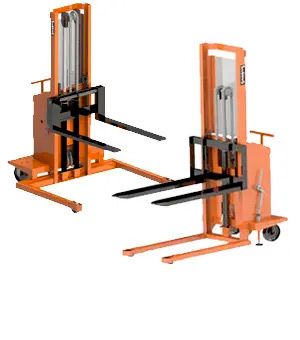

Choose Straddle or Fork-Over Style

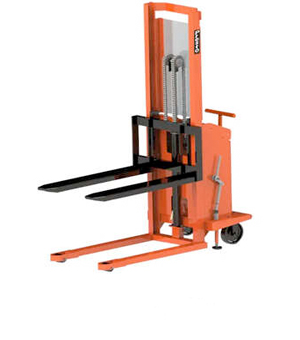

WP Fork Over Stacker

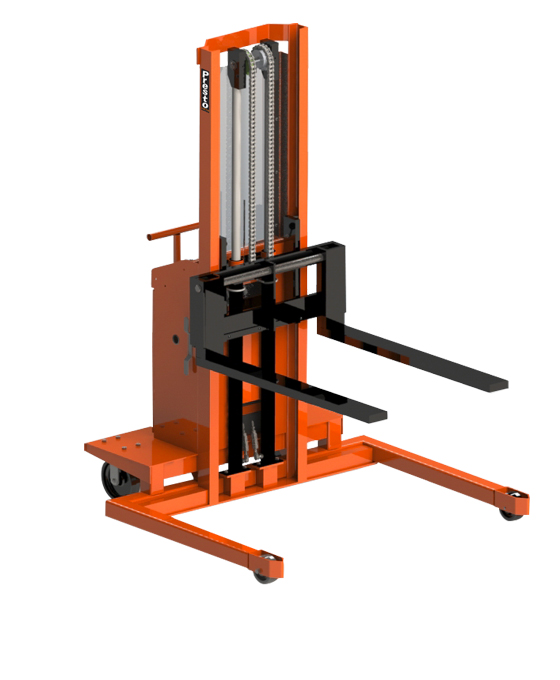

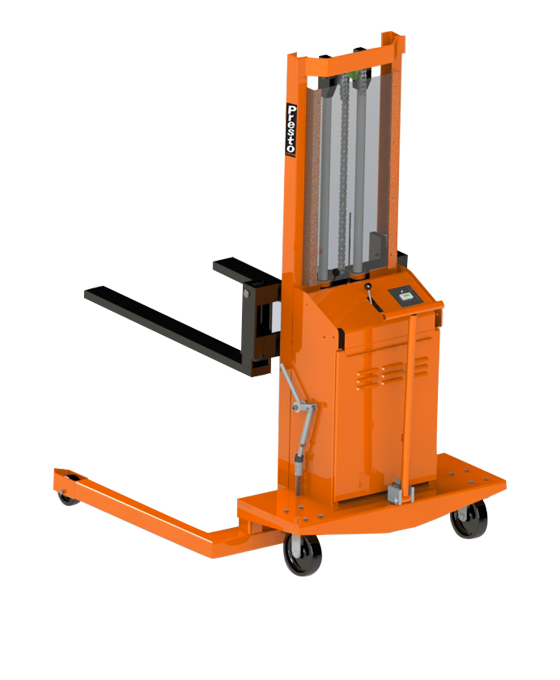

WPS in Straddle Configuration

Available in 2,000 or 3,000 lb. capacities

Model Number	Load Capacity	Raised Height	Lowered Height	Dimensions H x W x L	Base/Legs I.D./O.D.	Wheel Dia. Front/Rear	Shipping Weight
Model Number: WP Series - Non-Straddle
Model Number: WP36-20	Load Capacity: 2000 lbs	Raised Height: 36"	Lowered Height: 3 ¼"	Dimensions H x W x L : 60 x 28 x 65"	Base/Legs I.D./O.D. : 14" / 26 ½"	Wheel Dia. Front/Rear : 3" / 8"	Shipping Weight: 850 lbs
Model Number: WP60-20	Load Capacity: 2000 lbs	Raised Height: 60"	Lowered Height: 3 ¼"	Dimensions H x W x L : 84 x 28 x 65"	Base/Legs I.D./O.D. : 14" / 26 ½"	Wheel Dia. Front/Rear : 3" / 8"	Shipping Weight: 880 lbs
Model Number: WP36-30	Load Capacity: 3000 lbs	Raised Height: 36"	Lowered Height: 3 ¼"	Dimensions H x W x L : 60 x 28 x 65"	Base/Legs I.D./O.D. : 14" / 26 ½"	Wheel Dia. Front/Rear : 3" / 8"	Shipping Weight: 870 lbs
Model Number: WP60-30	Load Capacity: 3000 lbs	Raised Height: 60"	Lowered Height: 3 ¼"	Dimensions H x W x L : 84 x 28 x 65"	Base/Legs I.D./O.D. : 14" / 26 ½"	Wheel Dia. Front/Rear : 3" / 8"	Shipping Weight: 980 lbs
Model Number: For use with open bottom skids only. Not for use with closed bottom pallets.
Model Number: WPS42 Series - Straddle - 42" I.D.
Model Number: WPS4236-20	Load Capacity: 2000 lbs	Raised Height: 36"	Lowered Height: 2"	Dimensions H x W x L : 59 x 48 x 65"	Base/Legs I.D./O.D. : 42" / 48"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 880 lbs
Model Number: WPS4260-20	Load Capacity: 2000 lbs	Raised Height: 60"	Lowered Height: 2"	Dimensions H x W x L : 83 x 48 x 65"	Base/Legs I.D./O.D. : 42" / 48"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 920 lbs
Model Number: WPS4236-30	Load Capacity: 3000 lbs	Raised Height: 36"	Lowered Height: 2"	Dimensions H x W x L : 59 x 48 x 65"	Base/Legs I.D./O.D. : 42" / 48"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 900 lbs
Model Number: WPS4260-30	Load Capacity: 3000 lbs	Raised Height: 60"	Lowered Height: 2"	Dimensions H x W x L : 83 x 48 x 65"	Base/Legs I.D./O.D. : 42" / 48"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 970 lbs
Model Number: WPS50 Series - Straddle - 50" I.D.
Model Number: WPS5036-20	Load Capacity: 2000 lbs	Raised Height: 36"	Lowered Height: 2"	Dimensions H x W x L : 59 x 56 x 65"	Base/Legs I.D./O.D. : 50" / 56"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 890 lbs
Model Number: WPS5060-20	Load Capacity: 2000 lbs	Raised Height: 60"	Lowered Height: 2"	Dimensions H x W x L : 83 x 56 x 65"	Base/Legs I.D./O.D. : 50" / 56"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 970 lbs
Model Number: WPS5036-30	Load Capacity: 3000 lbs	Raised Height: 36"	Lowered Height: 2"	Dimensions H x W x L : 59 x 56 x 65"	Base/Legs I.D./O.D. : 50" / 56"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 920 lbs
Model Number: WPS5060-30	Load Capacity: 3000 lbs	Raised Height: 60"	Lowered Height: 2"	Dimensions H x W x L : 83 x 56 x 65"	Base/Legs I.D./O.D. : 50" / 56"	Wheel Dia. Front/Rear : 5" / 8"	Shipping Weight: 990 lbs

OPTIONS & ACCESSORIES

WHEELS & CASTERS

Standard wheels are phenolic plastic. Optional wheels are available. Consult Sales for details.

REMOTE CONTROLS

Powered Lift Stackers have control mounted adjacent to the push handle. Optional Remote Controls are available. Choose Hand Operated (RC) with a 10' or 20' coil cord, or Foot Control (FC) with a 10' cord.

FIFTH WHEEL & TILLER

Recommended for lifts with wide straddles of high load capacities. Consists of an 8" drive wheel and spring loaded tiller handle.

REVERSED / INVERTED FORKS

Ideal for overhead installation. Forks can be inverted which effectively increases the stackers lowered height and raised height.

SLIP-ON PLATFORMS

Platforms slide on over existing forks. 3 Sizes are available - 24" x 24" for 15" Load Centers, 32" x 30" for 18" and 20" Load Centers and 40" x 36" for 24" Load Centers.

MODIFIED PLATFORMS

Customized for a specific application, modified platforms include extended lengths or widths, cutouts, special shapes, floor level access, bridge plates, non-skid surfaces and more.

EXTENDED BACKPLATE

Wider of higher backplates to accommodate special lifting requirements.

BOOM WITH HOOK

Fork carriages can be equipped with a boom and hook for lifting and suspending loads with chains or lifting straps.

RAM

A Cylindrical Ram mounted to the fork carriage for handling rolls, and coils. Rams up to 30" long available.

DRUM GRABBER DG-30

Automatically grabs 30 or 55 gallon drums for hanling and stacking in the vertical position. Mounts on the back plate of any straddle base, fork model stacker. Parrot beak mechanism works with steel or fiber drums.

ROLLER BED

Excellent for transferring heavy object to or from a stacker with minimum effort. 3" rollers can be oriented front-to-back or side-to-side. Maximum capacity is 1,000 lbs. Requires a 24" load center.

P-6 DIE PULLER

Roller bed equipped with a hand operated winch with cable and hook. Maximum Capacity is 1,000 lbs. Requires a 24" Load Center.

FIRE RESISTANT HYDRAULIC FLUIDS

Water and glycol fluids are fire resistant, non-explosive and non-toxic. Approved by Factory Mutual Insurance Engineering Laboratories.

HEIGHT

Standard lift heights can be decreased to meet special requirements.

AIR POWER

Air motor with hydraulic pump. I.5 GPM at 80 PSI and 80 CFM of free air with lift fully loaded. Includes a hand or foot control valve. (FRL not included).
