CW Series Counterweight Stackers

Powered lift, manual drive stackers.

Counterweight design eliminates front straddle legs making this stacker ideal for feeding machinery, lifting to docks or mezzanines or anywhere that extended base legs could cause interference. Works with open and closed bottom pallets.

All of our CW Series Stackers are part of our Always-In-Stock Program and are available for shipping within one week.

Capacities from 200 to 1,100 lbs.

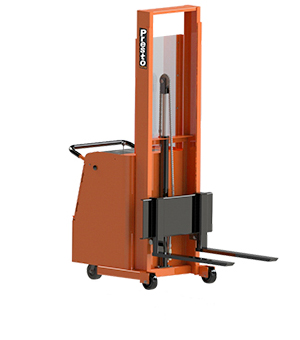

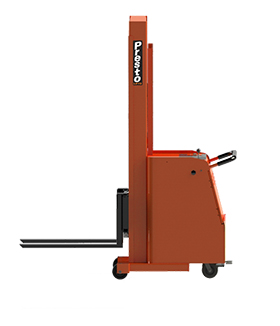

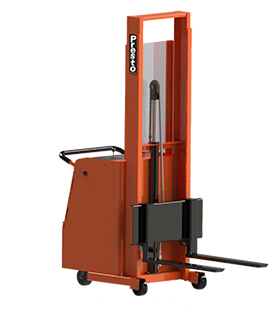

CW Series Counterweight Stacker

Raised Heights up to 74"

Model Number	Load Capacity	Raised Height	Lowered Height	Dimensions H x W x L	Wheel Dia. Front/Rear	Shipping Weight
Model Number: CW Series - Adjustable 25" Forks
Model Number: C62A-200	Load Capacity: 200 lbs	Raised Height: 62"	Lowered Height: 1"	Dimensions H x W x L : 80 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 750 lbs
Model Number: C62A-400	Load Capacity: 400 lbs	Raised Height: 62"	Lowered Height: 1"	Dimensions H x W x L : 80 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 900 lbs
Model Number: C62A-600	Load Capacity: 600 lbs	Raised Height: 62"	Lowered Height: 1"	Dimensions H x W x L : 80 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1000 lbs
Model Number: C62A-800	Load Capacity: 800 lbs	Raised Height: 62"	Lowered Height: 1"	Dimensions H x W x L : 80 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1100 lbs
Model Number: C62A-1000	Load Capacity: 1000 lbs	Raised Height: 62"	Lowered Height: 1"	Dimensions H x W x L : 80 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1200 lbs
Model Number: C74A-200	Load Capacity: 200 lbs	Raised Height: 74"	Lowered Height: 1"	Dimensions H x W x L : 92 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 775 lbs
Model Number: C74A-400	Load Capacity: 400 lbs	Raised Height: 74"	Lowered Height: 1"	Dimensions H x W x L : 92 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 925 lbs
Model Number: C74A-600	Load Capacity: 600 lbs	Raised Height: 74"	Lowered Height: 1"	Dimensions H x W x L : 92 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1025 lbs
Model Number: C74A-800	Load Capacity: 800 lbs	Raised Height: 74"	Lowered Height: 1"	Dimensions H x W x L : 92 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1125 lbs
Model Number: C74A-1000	Load Capacity: 1000 lbs	Raised Height: 74"	Lowered Height: 1"	Dimensions H x W x L : 92 x 27 x 36"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1225 lbs
Model Number: CW Series - Adjustable 30" Forks
Model Number: C62A-15LC	Load Capacity: 1000 lbs	Raised Height: 62"	Lowered Height: 1"	Dimensions H x W x L : 80 x 27 x 41"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1450 lbs
Model Number: C74A-15LC	Load Capacity: 1000 lbs	Raised Height: 74"	Lowered Height: 1"	Dimensions H x W x L : 92 x 27 x 41"	Wheel Dia. Front/Rear : 5" x 5"	Shipping Weight: 1475 lbs

OPTIONS & ACCESSORIES

WHEELS & CASTERS

Standard wheels are phenolic plastic. Optional wheels are available. Consult Sales for details.

REMOTE CONTROLS

Powered Lift Stackers have control mounted adjacent to the push handle. Optional Remote Controls are available. Choose Hand Operated (RC) with a 10' or 20' coil cord, or Foot Control (FC) with a 10' cord.

FIFTH WHEEL & TILLER

Recommended for lifts with wide straddles of high load capacities. Consists of an 8" drive wheel and spring loaded tiller handle.

REVERSED / INVERTED FORKS

Ideal for overhead installation. Forks can be inverted which effectively increases the stackers lowered height and raised height.

SLIP-ON PLATFORMS

Platforms slide on over existing forks. 3 Sizes are available - 24" x 24" for 15" Load Centers, 32" x 30" for 18" and 20" Load Centers and 40" x 36" for 24" Load Centers.

MODIFIED PLATFORMS

Customized for a specific application, modified platforms include extended lengths or widths, cutouts, special shapes, floor level access, bridge plates, non-skid surfaces and more.

EXTENDED BACKPLATE

Wider of higher backplates to accommodate special lifting requirements.

BOOM WITH HOOK

Fork carriages can be equipped with a boom and hook for lifting and suspending loads with chains or lifting straps.

RAM

A Cylindrical Ram mounted to the fork carriage for handling rolls, and coils. Rams up to 30" long available.

DRUM GRABBER DG-30

Automatically grabs 30 or 55 gallon drums for hanling and stacking in the vertical position. Mounts on the back plate of any straddle base, fork model stacker. Parrot beak mechanism works with steel or fiber drums.

ROLLER BED

Excellent for transferring heavy object to or from a stacker with minimum effort. 3" rollers can be oriented front-to-back or side-to-side. Maximum capacity is 1,000 lbs. Requires a 24" load center.

P-6 DIE PULLER

Roller bed equipped with a hand operated winch with cable and hook. Maximum Capacity is 1,000 lbs. Requires a 24" Load Center.

FIRE RESISTANT HYDRAULIC FLUIDS

Water and glycol fluids are fire resistant, non-explosive and non-toxic. Approved by Factory Mutual Insurance Engineering Laboratories.

HEIGHT

Standard lift heights can be decreased to meet special requirements.

AIR POWER

Air motor with hydraulic pump. I.5 GPM at 80 PSI and 80 CFM of free air with lift fully loaded. Includes a hand or foot control valve. (FRL not included).
