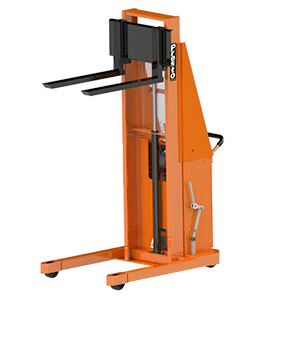

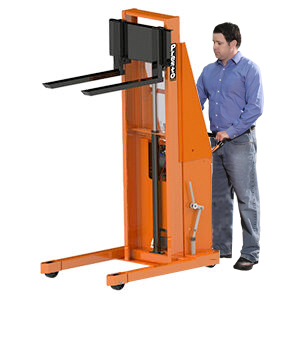

Presto B800 and BT800 Series are manual drive / powered lift stackers that are perfect for medium-duty pallet handling applications. They are available in 1,500 and 2,000 pound capacities at a 20" load center and with fixed or telescoping masts to provide lifting heights from 62" up 127"
They feature fixed straddle bases for use with any type of pallet or skid - even closed bottom. B800 Series unit have 26" Straddle I.D. and BT800 Series units have a 32" Straddle I.D.
| Model Number | Load Capacity | Raised Height | Lowered Height | Dimensions H x W x L | Base/Legs I.D./O.D. | Wheel Dia. Front/Rear | Shipping Weight |
|---|---|---|---|---|---|---|---|
|
Model
Number: B800 Series - 20" Load Center | |||||||
|
Model
Number: B862-2000 |
Load Capacity:
2000 lbs
|
Raised
Height: 62" |
Lowered
Height: 2 ½" |
Dimensions
H x W x L : 80 x 32 x 54" |
Base/Legs
I.D./O.D. : 26" / 32" |
Wheel Dia.
Front/Rear : 5" / 4" |
Shipping
Weight: 635 lbs |
|
Model
Number: B874-2000 |
Load Capacity:
2000 lbs
|
Raised
Height: 74" |
Lowered
Height: 2 ½" |
Dimensions
H x W x L : 92 x 32 x 54" |
Base/Legs
I.D./O.D. : 26" / 32" |
Wheel Dia.
Front/Rear : 5" / 4" |
Shipping
Weight: 660 lbs |
|
Model
Number: BT800 Series - 20" Load Center | |||||||
|
Model
Number: BT894-2000 |
Load Capacity:
2000 lbs
|
Raised
Height: 94" |
Lowered
Height: 2 ½" |
Dimensions
H x W x L : 119/74 x 38 x 55" |
Base/Legs
I.D./O.D. : 32" / 38" |
Wheel Dia.
Front/Rear : 5" / 4" |
Shipping
Weight: 880 lbs |
|
Model
Number: BT8107-2000 |
Load Capacity:
2000 lbs
|
Raised
Height: 107" |
Lowered
Height: 2 ½" |
Dimensions
H x W x L : 133/81 x 38 x 55" |
Base/Legs
I.D./O.D. : 32" / 38" |
Wheel Dia.
Front/Rear : 5" / 4" |
Shipping
Weight: 930 lbs |
|
Model
Number: BT8127-2000 |
Load Capacity:
2000 lbs
|
Raised
Height: 127" |
Lowered
Height: 2 ½" |
Dimensions
H x W x L : 154/92 x 38 x 55" |
Base/Legs
I.D./O.D. : 32" / 38" |
Wheel Dia.
Front/Rear : 5" / 4" |
Shipping
Weight: 980 lbs |
OPTIONS & ACCESSORIES
- WHEELS & CASTERS
- REMOTE CONTROLS
- FIFTH WHEEL & TILLER
- REVERSED / INVERTED FORKS
- SLIP-ON PLATFORMS
- MODIFIED PLATFORMS
- EXTENDED BACKPLATE
- BOOM WITH HOOK
- RAM
- DRUM GRABBER DG-30
- ROLLER BED
- P-6 DIE PULLER
- FIRE RESISTANT HYDRAULIC FLUIDS
- HEIGHT
- AIR POWER
Standard wheels are phenolic plastic. Optional wheels are available. Consult Sales for details.
Powered Lift Stackers have control mounted adjacent to the push handle. Optional Remote Controls are available. Choose Hand Operated (RC) with a 10' or 20' coil cord, or Foot Control (FC) with a 10' cord.
Recommended for lifts with wide straddles of high load capacities. Consists of an 8" drive wheel and spring loaded tiller handle.
Ideal for overhead installation. Forks can be inverted which effectively increases the stackers lowered height and raised height.
Platforms slide on over existing forks. 3 Sizes are available - 24" x 24" for 15" Load Centers, 32" x 30" for 18" and 20" Load Centers and 40" x 36" for 24" Load Centers.
Customized for a specific application, modified platforms include extended lengths or widths, cutouts, special shapes, floor level access, bridge plates, non-skid surfaces and more.
Wider of higher backplates to accommodate special lifting requirements.
Share this product
- Fixed and telescopic masts
- Adjustable solid steel forks - 3" wide x 30" long
- Forks adjust from 6-1/2" to 26-1/2" O.D. on B800 series
- Lifting speed - 5" per second
- Flow control valve for smooth lowering
- Hand-operated floor lock
- Turning radius with 40" load: -85" aisle for B800 series -87" aisle for BT800 series (12" operator clearance)
- Heavy-duty 12V battery with microprocessor charger
- Optional fifth wheel for greater mobility
- Dual leaf-type chains with 8250 lb yield point
- High-impact, floor-saving phenolic load wheels
