B600 Series Battery Stackers

Small and extremely maneuverable these stackers with powered lift are ideal for a wide variety of uses. They are available in 1,000 or 2,000 capacity at a 15" load center. Use them with small open bottom pallets or skids.

Power is supplied by a heavy-duty 12 volt battery that generates a lifting speed of 5" per second. The leaf type chain has an 8,250 lb. yield point and a perforated metal screen to prevent physical contact during lifting and lowering.

An LED dash mounted diagnostic display provides operators with battery status. A custom microprocessor charger is built-in for fast, convenient charging in any 115v outlet.

Solid steel forks are adjustable from 6 1/2" to 26 1/2" O.D. Phenolic wheels won't damage floors and a foot operated floor lock prevents unwanted movement.

Quick Ship option on select models and sizes, see offer details here.

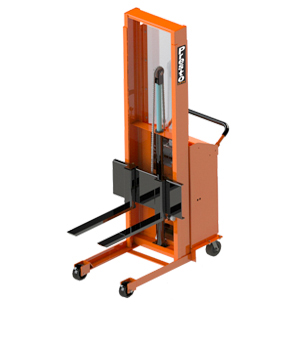

B600 Series Stacker

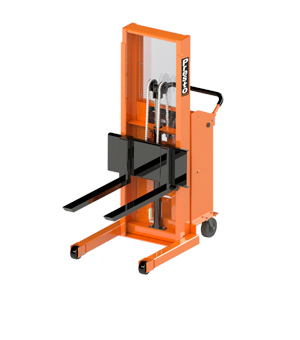

B600 Series Stacker

Capacities up to 2,000 lbs.

Model Number	Load Capacity	Raised Height	Lowered Height	Dimensions H x W x L	Base/Legs I.D./O.D.	Wheel Dia. Front/Rear	Shipping Weight
Model Number: B600 Series - Adjustable 25" Forks (Non-Straddle) - 15" Load Center
Model Number: B652	Load Capacity: 1000 lbs	Raised Height: 52"	Lowered Height: 5 ¼"	Dimensions H x W x L : 67 x 27 x 49"	Base/Legs I.D./O.D. : 15" / 21"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 500 lbs
Model Number: B666	Load Capacity: 1000 lbs	Raised Height: 66"	Lowered Height: 5 ¼"	Dimensions H x W x L : 81 x 27 x 49"	Base/Legs I.D./O.D. : 15" / 21"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 520 lbs
Model Number: B678	Load Capacity: 1000 lbs	Raised Height: 78"	Lowered Height: 5 ¼"	Dimensions H x W x L : 93 x 27 x 49"	Base/Legs I.D./O.D. : 15" / 21"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 540 lbs
Model Number: B652-2000	Load Capacity: 2000 lbs	Raised Height: 52"	Lowered Height: 5 ¼"	Dimensions H x W x L : 67 x 27 x 49"	Base/Legs I.D./O.D. : 20" / 26"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 550 lbs
Model Number: B666-2000	Load Capacity: 2000 lbs	Raised Height: 66"	Lowered Height: 5 ¼"	Dimensions H x W x L : 81 x 27 x 49"	Base/Legs I.D./O.D. : 20" / 26"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 570 lbs
Model Number: B678-2000	Load Capacity: 2000 lbs	Raised Height: 78"	Lowered Height: 5 ¼"	Dimensions H x W x L : 93 x 27 x 49"	Base/Legs I.D./O.D. : 20" / 26"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 590 lbs

OPTIONS & ACCESSORIES

WHEELS & CASTERS

Standard wheels are phenolic plastic. Optional wheels are available. Consult Sales for details.

REMOTE CONTROLS

Powered Lift Stackers have control mounted adjacent to the push handle. Optional Remote Controls are available. Choose Hand Operated (RC) with a 10' or 20' coil cord, or Foot Control (FC) with a 10' cord.

FIFTH WHEEL & TILLER

Recommended for lifts with wide straddles of high load capacities. Consists of an 8" drive wheel and spring loaded tiller handle.

REVERSED / INVERTED FORKS

Ideal for overhead installation. Forks can be inverted which effectively increases the stackers lowered height and raised height.

SLIP-ON PLATFORMS

Platforms slide on over existing forks. 3 Sizes are available - 24" x 24" for 15" Load Centers, 32" x 30" for 18" and 20" Load Centers and 40" x 36" for 24" Load Centers.

MODIFIED PLATFORMS

Customized for a specific application, modified platforms include extended lengths or widths, cutouts, special shapes, floor level access, bridge plates, non-skid surfaces and more.

EXTENDED BACKPLATE

Wider of higher backplates to accommodate special lifting requirements.

BOOM WITH HOOK

Fork carriages can be equipped with a boom and hook for lifting and suspending loads with chains or lifting straps.

RAM

A Cylindrical Ram mounted to the fork carriage for handling rolls, and coils. Rams up to 30" long available.

DRUM GRABBER DG-30

Automatically grabs 30 or 55 gallon drums for hanling and stacking in the vertical position. Mounts on the back plate of any straddle base, fork model stacker. Parrot beak mechanism works with steel or fiber drums.

ROLLER BED

Excellent for transferring heavy object to or from a stacker with minimum effort. 3" rollers can be oriented front-to-back or side-to-side. Maximum capacity is 1,000 lbs. Requires a 24" load center.

P-6 DIE PULLER

Roller bed equipped with a hand operated winch with cable and hook. Maximum Capacity is 1,000 lbs. Requires a 24" Load Center.

FIRE RESISTANT HYDRAULIC FLUIDS

Water and glycol fluids are fire resistant, non-explosive and non-toxic. Approved by Factory Mutual Insurance Engineering Laboratories.

HEIGHT

Standard lift heights can be decreased to meet special requirements.

AIR POWER

Air motor with hydraulic pump. I.5 GPM at 80 PSI and 80 CFM of free air with lift fully loaded. Includes a hand or foot control valve. (FRL not included).
