AC Electric Stackers

These 1,000 lb. capacity stackers are powered by standard 115V single phase power and are highly reliable. They are available in portable or stationary configurations with fixed or telescoping masts and lifting heights up to 130".

Standard units are equipped with 30" long adjustable solid steel forks. An optional 32" x 30" slip-on platform can be added. Custom designed platforms are also available.

Lift and lowering control is via standard remote control with coil cord that extends a full 20 feet.

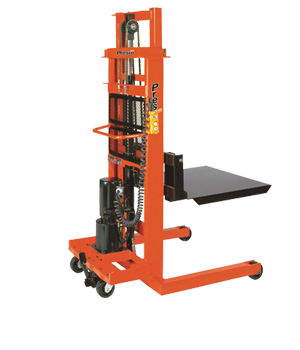

AC Series Electric Stacker

AC Series Electric Stacker

Model Number	Load Capacity	Raised Height	Lowered Height	Dimensions H x W x L	Base/Legs I.D./O.D.	Wheel Dia. Front/Rear	Shipping Weight
Model Number: EPF Series - Portable - 30" Forks
Model Number: EPF752	Load Capacity: 1000 lbs	Raised Height: 52"	Lowered Height: 5 ¼"	Dimensions H x W x L : 66 x 31 x 49"	Base/Legs I.D./O.D. : 24" / 30"	Wheel Dia. Front/Rear : 5" / 4"	Shipping Weight: 490 lbs
Model Number: EPF766	Load Capacity: 1000 lbs	Raised Height: 66"	Lowered Height: 5 ¼"	Dimensions H x W x L : 80 x 31 x 49"	Base/Legs I.D./O.D. : 24" / 30"	Wheel Dia. Front/Rear : 5" / 4"	Shipping Weight: 500 lbs
Model Number: EPF778	Load Capacity: 1000 lbs	Raised Height: 78"	Lowered Height: 5 ¼"	Dimensions H x W x L : 92 x 31 x 49"	Base/Legs I.D./O.D. : 24" / 30"	Wheel Dia. Front/Rear : 5" / 4"	Shipping Weight: 530 lbs
Model Number: ESF Series - Stationary - 30" Forks
Model Number: ESF750	Load Capacity: 1000 lbs	Raised Height: 50"	Lowered Height: 3 ¼"	Dimensions H x W x L : 64 x 30 x 49"	Base/Legs I.D./O.D. : 24" / 30"	Wheel Dia. Front/Rear : N/A	Shipping Weight: 480 lbs
Model Number: ESF764	Load Capacity: 1000 lbs	Raised Height: 64"	Lowered Height: 3 ¼"	Dimensions H x W x L : 78 x 30 x 49"	Base/Legs I.D./O.D. : 24" / 30"	Wheel Dia. Front/Rear : N/A	Shipping Weight: 570 lbs
Model Number: ESF776	Load Capacity: 1000 lbs	Raised Height: 76"	Lowered Height: 3 ¼"	Dimensions H x W x L : 90 x 30 x 49"	Base/Legs I.D./O.D. : 24" / 30"	Wheel Dia. Front/Rear : N/A	Shipping Weight: 590 lbs
Model Number: EPFT Series - Portable - 30" Forks
Model Number: EPFT796	Load Capacity: 1000 lbs	Raised Height: 94"	Lowered Height: 5 ¼"	Dimensions H x W x L : 112/67 x 41 x 52"	Base/Legs I.D./O.D. : 34" / 40"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 800 lbs
Model Number: EPFT7110	Load Capacity: 1000 lbs	Raised Height: 110"	Lowered Height: 5 ¼"	Dimensions H x W x L : 133/80 x 41 x 52"	Base/Legs I.D./O.D. : 34" / 40"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 900 lbs
Model Number: EPFT7130	Load Capacity: 1000 lbs	Raised Height: 130"	Lowered Height: 5 ¼"	Dimensions H x W x L : 155/92 x 40 x 52"	Base/Legs I.D./O.D. : 34" / 40"	Wheel Dia. Front/Rear : 5" / 5"	Shipping Weight: 980 lbs

OPTIONS & ACCESSORIES

WHEELS & CASTERS

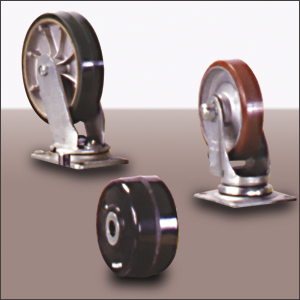

Standard wheels are phenolic plastic. Optional wheels are available. Consult Sales for details.

REMOTE CONTROLS

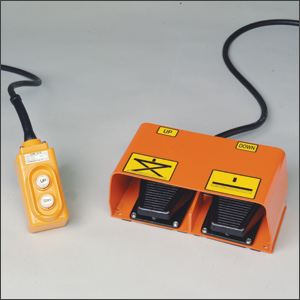

Powered Lift Stackers have control mounted adjacent to the push handle. Optional Remote Controls are available. Choose Hand Operated (RC) with a 10' or 20' coil cord, or Foot Control (FC) with a 10' cord.

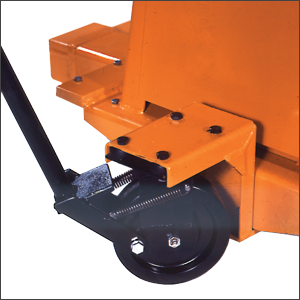

FIFTH WHEEL & TILLER

Recommended for lifts with wide straddles of high load capacities. Consists of an 8" drive wheel and spring loaded tiller handle.

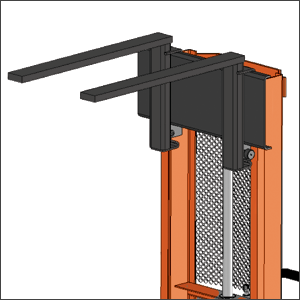

REVERSED / INVERTED FORKS

Ideal for overhead installation. Forks can be inverted which effectively increases the stackers lowered height and raised height.

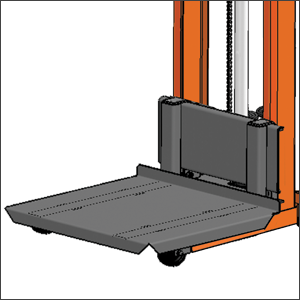

SLIP-ON PLATFORMS

Platforms slide on over existing forks. 3 Sizes are available - 24" x 24" for 15" Load Centers, 32" x 30" for 18" and 20" Load Centers and 40" x 36" for 24" Load Centers.

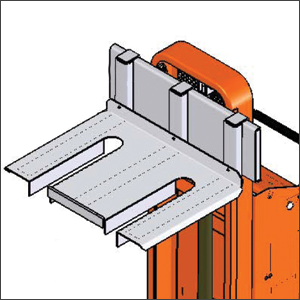

MODIFIED PLATFORMS

Customized for a specific application, modified platforms include extended lengths or widths, cutouts, special shapes, floor level access, bridge plates, non-skid surfaces and more.

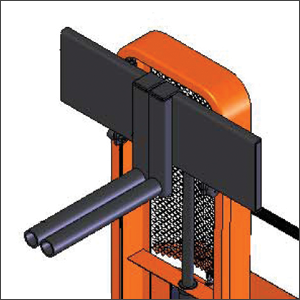

EXTENDED BACKPLATE

Wider of higher backplates to accommodate special lifting requirements.

BOOM WITH HOOK

Fork carriages can be equipped with a boom and hook for lifting and suspending loads with chains or lifting straps.

RAM

A Cylindrical Ram mounted to the fork carriage for handling rolls, and coils. Rams up to 30" long available.

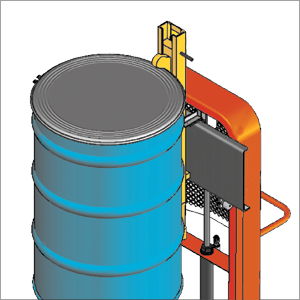

DRUM GRABBER DG-30

Automatically grabs 30 or 55 gallon drums for hanling and stacking in the vertical position. Mounts on the back plate of any straddle base, fork model stacker. Parrot beak mechanism works with steel or fiber drums.

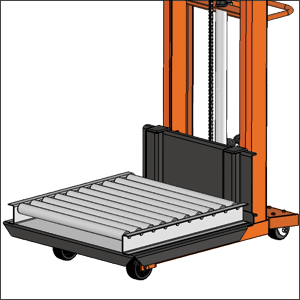

ROLLER BED

Excellent for transferring heavy object to or from a stacker with minimum effort. 3" rollers can be oriented front-to-back or side-to-side. Maximum capacity is 1,000 lbs. Requires a 24" load center.

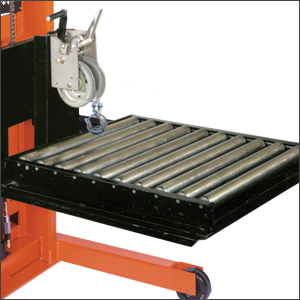

P-6 DIE PULLER

Roller bed equipped with a hand operated winch with cable and hook. Maximum Capacity is 1,000 lbs. Requires a 24" Load Center.

FIRE RESISTANT HYDRAULIC FLUIDS

Water and glycol fluids are fire resistant, non-explosive and non-toxic. Approved by Factory Mutual Insurance Engineering Laboratories.

HEIGHT

Standard lift heights can be decreased to meet special requirements.

AIR POWER

Air motor with hydraulic pump. I.5 GPM at 80 PSI and 80 CFM of free air with lift fully loaded. Includes a hand or foot control valve. (FRL not included).
