XP/WXP Manual Foot Pump Lift Tables - Mobile Lift Tables

These compact and extremely maneuverable scissor lifts improve efficiency and worker safety. Ideal for use as portable workstations, machine feeding tables and load transporters. A simple to use foot pump raises loads weighing up to 1,500 lbs. to heights up to 45-1/4".

Several platfom sizes are available from 20" x 32" up to 48" x 54" to handle a variety of items.

Quick Ship option on select models and sizes, see offer details here.

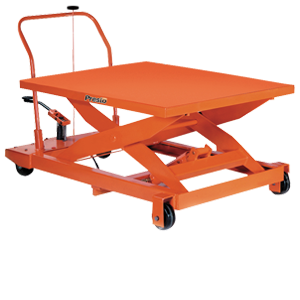

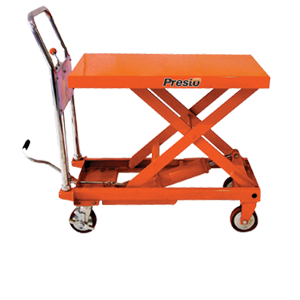

XP Series Portable Lift with Foot Pump
WXP Series Portable Foot Pump Lift

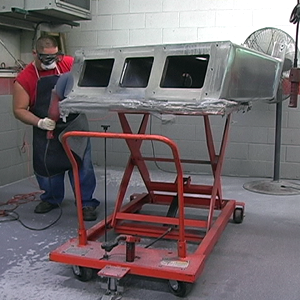

WXP Series Portable Lift with Oversized Casters

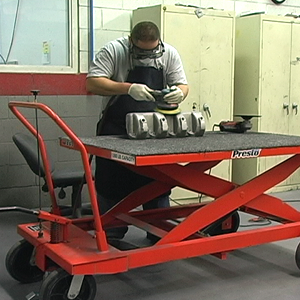

Portable Lift used in Grinding Application
Quick Ship Eligible

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		Standard
Platform		Maximum
Platform 		Lifting
Strokes		Shipping
Weight
Model
Number : XP24 Series - 23" Travel
Model
Number : XP24-300
Load
Capacity : 300 lbs
Raised
Height : 33"
Lowered
Height : 10"
Standard
Platform: 20" x 32"
Maximum
Platform : 20" x 32"
Lifting
Strokes: 12
Shipping
Weight: 250 lbs
Model
Number : XP24-600
Load
Capacity : 600 lbs
Raised
Height : 33"
Lowered
Height : 10"
Standard
Platform: 20" x 32"
Maximum
Platform : 20" x 32"
Lifting
Strokes: 25
Shipping
Weight: 260 lbs
Model
Number : XP24 Series - 24" Travel
Model
Number : XP24-10
Load
Capacity : 1000 lbs
Raised
Height : 33"
Lowered
Height : 9 ¼"
Standard
Platform: 24" x 36"
Maximum
Platform : 30" x 42"
Lifting
Strokes: 35
Shipping
Weight: 410 lbs
Model
Number : XP24-15
Load
Capacity : 1500 lbs
Raised
Height : 33"
Lowered
Height : 9 ¼"
Standard
Platform: 24" x 36"
Maximum
Platform : 30" x 42"
Lifting
Strokes: 55
Shipping
Weight: 415 lbs
Model
Number : XP24-20
Load
Capacity : 2000 lbs
Raised
Height : 41 ½"
Lowered
Height : 17 ½"
Standard
Platform: 24" x 36"
Maximum
Platform : 48" x 48"
Lifting
Strokes: 85
Shipping
Weight: 750 lbs
Model
Number : XP36 Series - 36" Travel
Model
Number : XP36-10
Load
Capacity : 1000 lbs
Raised
Height : 45"
Lowered
Height : 9 ¼"
Standard
Platform: 24" x 48"
Maximum
Platform : 30" x 54"
Lifting
Strokes: 46
Shipping
Weight: 440 lbs
Model
Number : XP36-15
Load
Capacity : 1500 lbs
Raised
Height : 45"
Lowered
Height : 9 ¼"
Standard
Platform: 24" x 48"
Maximum
Platform : 30" x 54"
Lifting
Strokes: 69
Shipping
Weight: 445 lbs
Model
Number : XP36-20
Load
Capacity : 2000 lbs
Raised
Height : 53 ½"
Lowered
Height : 17 ½"
Standard
Platform: 24" x 48"
Maximum
Platform : 48" x 60"
Lifting
Strokes: 130
Shipping
Weight: 860 lbs
Model
Number : WXP24 Series - 24" Travel
Model
Number : WXP24-10
Load
Capacity : 1000 lbs
Raised
Height : 33 ¼"
Lowered
Height : 9 ¼"
Standard
Platform: 36" x 36"
Maximum
Platform : 42" x 42"
Lifting
Strokes: 35
Shipping
Weight: 450 lbs
Model
Number : WXP24-15
Load
Capacity : 1500 lbs
Raised
Height : 33 ¼"
Lowered
Height : 9 ¼"
Standard
Platform: 36" x 36"
Maximum
Platform : 42" x 42"
Lifting
Strokes: 55
Shipping
Weight: 455 lbs
Model
Number : WXP36 Series - 36" Travel
Model
Number : WXP36-10
Load
Capacity : 1000 lbs
Raised
Height : 45 ¼"
Lowered
Height : 9 ¼"
Standard
Platform: 36" x 48"
Maximum
Platform : 48" x 54"
Lifting
Strokes: 46
Shipping
Weight: 480 lbs
Model
Number : WXP36-15
Load
Capacity : 1500 lbs
Raised
Height : 45 ¼"
Lowered
Height : 9 ¼"
Standard
Platform: 36" x 48"
Maximum
Platform : 48" x 54"
Lifting
Strokes: 69
Shipping
Weight: 485 lbs

Share this product

  • Foot-operated hydraulic pump
  • Hand-release for lowering
  • Two fixed & two swivel 5" x 2" phenolic casters
  • XP24-20 and XP36-20 have 6" casters
  • Hinged platform cylinder access
  • Foot-operated floor lock - except XP24-300 & XP24-600
  • Rear caster brakes - XP24-300 & XP24-600 only
  • Oversized and custom platforms available
  • Optional casters available
  • Custom designs available
Download - General Catalog
