XBP/WBP Series DC Electric Lift

These portable scissor lift tables offer the added convenience of powered lift. Hand pendant control allows users to raise or lower loads simply by touching a button. DC power is supplied by a 12 volt gel cell battery with built-in 5 amp built in charger

Capacities of 1,000, 1,500 and 2,000 lbs. with lifting heights up to 53" are available.

Quick Ship option on select models and sizes, see offer details here.

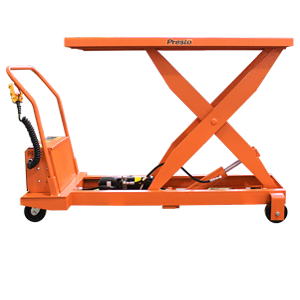

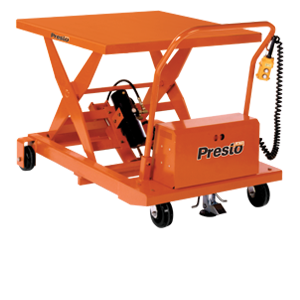

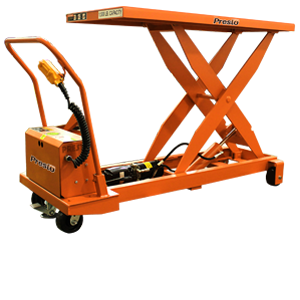

WBP Series Portable Scissor Lift
WBP Lift with 45" Raised Height
WBP Series Lift with 24" x 48" Platform

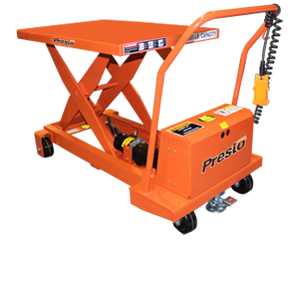

Battery Powered Lift with Hand Remote

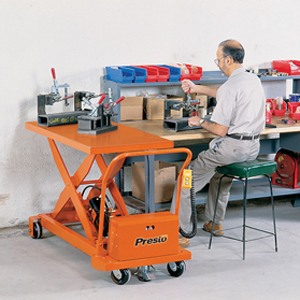

Portable Lift used at Inspection Station

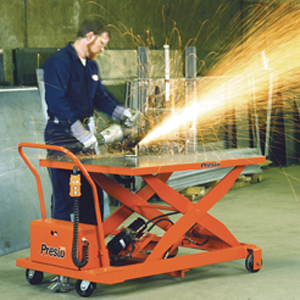

Portable Lift used in Finish Grinding

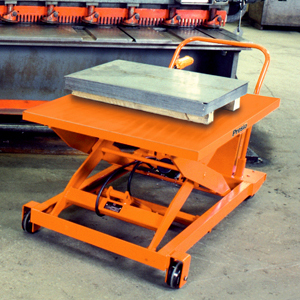

Portable Lift for Feeding Sheets
Quick Ship Eligible

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		End/Side
Capacity		Std. Base
& Platform 		Maximum
Platform 		Lifting
Speed 		Shipping
Weight
Model
Number : XBP24 Series - 24" Travel - 24"W x 36"L Platform
Model
Number : XBP24-10
Load
Capacity : 1000 lbs
Raised
Height : 33"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1000 lbs
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 30" x 42"
Lifting
Speed : 18 sec
Shipping
Weight: 470 lbs
Model
Number : XBP24-15
Load
Capacity : 1500 lbs
Raised
Height : 33"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1500 lbs
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 30" x 42"
Lifting
Speed : 27 sec
Shipping
Weight: 475 lbs
Model
Number : XBP24-20
Load
Capacity : 2000 lbs
Raised
Height : 41 ½"
Lowered
Height : 17 ½"
End/Side
Capacity: 2000 lbs
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 48" x 48"
Lifting
Speed : 15 sec
Shipping
Weight: 700 lbs
Model
Number : XBP36 Series - 36" Travel - 24"W x 48"L Platform
Model
Number : XBP36-10
Load
Capacity : 1000 lbs
Raised
Height : 45"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1000 lbs
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 30" x 54"
Lifting
Speed : 26 sec
Shipping
Weight: 500 lbs
Model
Number : XBP36-15
Load
Capacity : 1500 lbs
Raised
Height : 45"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1500 lbs
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 30" x 54"
Lifting
Speed : 41 sec
Shipping
Weight: 505 lbs
Model
Number : XBP36-20
Load
Capacity : 2000 lbs
Raised
Height : 53 ½"
Lowered
Height : 17 ½"
End/Side
Capacity: 2000 lbs
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 48" x 60"
Lifting
Speed : 22 sec
Shipping
Weight: 700 lbs
Model
Number : WBP24 Series - 24" Travel - 36"W x 36"L Platform
Model
Number : WBP24-10
Load
Capacity : 1000 lbs
Raised
Height : 33 ¼"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1000 lbs
Std. Base
& Platform : 36" x 36"
Maximum
Platform : 42" x 42"
Lifting
Speed : 18 sec
Shipping
Weight: 590 lbs
Model
Number : WBP24-15
Load
Capacity : 1500 lbs
Raised
Height : 33 ¼"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1500 lbs
Std. Base
& Platform : 36" x 36"
Maximum
Platform : 42" x 42"
Lifting
Speed : 27 sec
Shipping
Weight: 610 lbs
Model
Number : WBP36 Series - 36" Travel - 36"W x 48"L Platform
Model
Number : WBP36-10
Load
Capacity : 1000 lbs
Raised
Height : 45 ¼"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1000 lbs
Std. Base
& Platform : 36" x 48"
Maximum
Platform : 48" x 54"
Lifting
Speed : 26 sec
Shipping
Weight: 650 lbs
Model
Number : WBP36-15
Load
Capacity : 1500 lbs
Raised
Height : 45 ¼"
Lowered
Height : 9 ¼"
End/Side
Capacity: 1500 lbs
Std. Base
& Platform : 36" x 48"
Maximum
Platform : 48" x 54"
Lifting
Speed : 41 sec
Shipping
Weight: 675 lbs

Share this product

  • 5" x 2" high-impact phenolic casters, 2 fixed, 2 swivel
  • Easy-to-service internal power unit
  • 1/2" steel plate scissor legs
  • 12V AGM cell battery
  • Built-in 5 amp battery charger
  • Optional power units available
  • Hinged platform for cylinder/power unit access
  • Foot-operated safety floor lock
  • Gravity lowering on XBP Series
  • Powered lowering on WBP Series
Download - General Catalog
