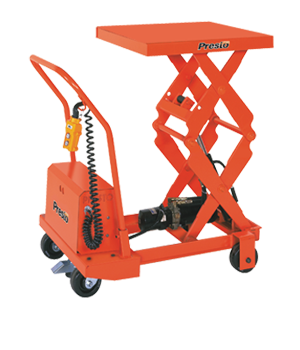

DBP Series Double Scissor High Lift

The double scissor design of these lifts provides for maximum vertical travel in a compact size. These portable lift tables have superior manueverability which makes them ideal for any application that requires loads be moved from one area to another.

Pushbutton control allows the operator to position the load at just the right height for loading, offloading or use as a workstation.

Portability also makes them ideal for sharing a lift between multiple work cells that may not have enough volume to justify a dedicated lift.

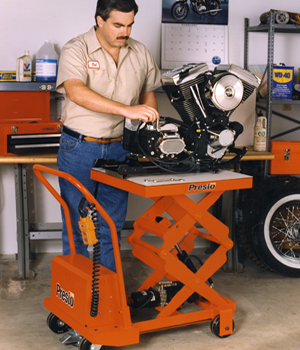

DBP Series Portable Lift used in Repair Shop
DBP Series Extended Travel Battery Powered Portable Scissor Lift Tables

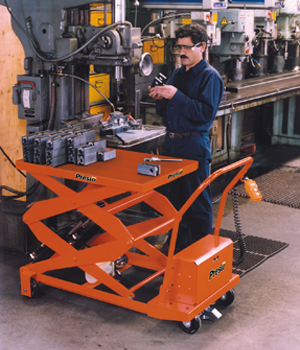

DBP Series Portable Lift used for Machine Feeding
DBP Series Extended Travel Battery Powered Portable Scissor Lift Tables

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		Std. Base
& Platform 		Maximum
Platform 		Lifting
Speed 		Shipping
Weight
Model
Number : DBP30 Series - 30" Travel - 24"W x 24"L Platform
Model
Number : DBP30-10
Load
Capacity : 1000 lbs
Raised
Height : 40 ¾"
Lowered
Height : 10 ¾"
Std. Base
& Platform : 24" x 24"
Maximum
Platform : 30" x 30"
Lifting
Speed : 8 sec
Shipping
Weight: 470 lbs
Model
Number : DBP36 Series - 36" Travel - 24"W x 36"L Platform
Model
Number : DBP36-10
Load
Capacity : 1000 lbs
Raised
Height : 47 ¾"
Lowered
Height : 11 ¾"
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 30" x 42"
Lifting
Speed : 14 sec
Shipping
Weight: 505 lbs
Model
Number : DBP36-15
Load
Capacity : 1500 lbs
Raised
Height : 47 ¾"
Lowered
Height : 11 ¾"
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 30" x 42"
Lifting
Speed : 20 sec
Shipping
Weight: 515 lbs
Model
Number : DBP48 Series - 48" Travel - 24"W x 48"L Platform
Model
Number : DBP48-10
Load
Capacity : 1000 lbs
Raised
Height : 59 ¾"
Lowered
Height : 11 ¾"
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 30" x 54"
Lifting
Speed : 43 sec
Shipping
Weight: 650 lbs
Model
Number : DBP48-15
Load
Capacity : 1500 lbs
Raised
Height : 59 ⅝"
Lowered
Height : 11 ⅝"
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 30" x 54"
Lifting
Speed : 43 sec
Shipping
Weight: 700 lbs

Share this product

  • Available in 1,000 and 1,500 lb. Capacities
  • Lift Heights to Over 59"
  • Pendant Control
  • 2 Fixed / 2 Swivel Caster
  • Standard Platforms Up To 28" x 48"
  • Larger Platforms Available
  • 12 Volt AGM Battery
  • Built-in 5 Amp Charger
Download - General Catalog
