AXS Series Heavy-Duty Scissor Lifts
These heavy-duty pneumatic scissor lift tables feature additional airbags to handle increased capacity - up to 8,000 lbs. They require no electricity and can be used anywhere that shop air is available.
Typically pneumatic lift tables require less maintenance than conventional lift tables and because there is no hydraulic fluid there is no potential for process contamination.
Lifting and lowering is controlled by a standard pedestal control. Foot control is available as a standard option.
A pressure relief valve is standard and actuators come with a lifetime warranty.

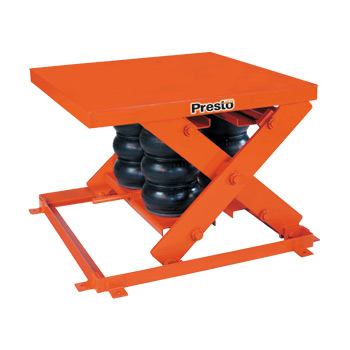

ASX Series Heavy Duty Pneumatic Scissor Lift
| Model Number | Load Capacity | Raised Height | Lowered Height | Vertical Travel | Base Size W xL | Platform Size W x L | Shipping Weight |
|---|---|---|---|---|---|---|---|
|
Model
Number : AXS20 Series | |||||||
|
Model
Number : AXS20-3648 |
Load
Capacity : 2000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 36" x 48" |
Shipping Weight:
855 lbs
|
|
Model
Number : AXS20-4848 |
Load
Capacity : 2000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 48" x 48" |
Shipping Weight:
915 lbs
|
|
Model
Number : AXS20-4856 |
Load
Capacity : 2000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 48" x 56" |
Shipping Weight:
955 lbs
|
|
Model
Number : AXS20-4860 |
Load
Capacity : 2000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 48" x 60" |
Shipping Weight:
1040 lbs
|
|
Model
Number : AXS40 Series | |||||||
|
Model
Number : AXS40-3648 |
Load
Capacity : 4000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 36" x 48" |
Shipping Weight:
1020 lbs
|
|
Model
Number : AXS40-4848 |
Load
Capacity : 4000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 48" x 48" |
Shipping Weight:
1040 lbs
|
|
Model
Number : AXS40-4856 |
Load
Capacity : 4000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 48" x 56" |
Shipping Weight:
1115 lbs
|
|
Model
Number : AXS40-4860 |
Load
Capacity : 4000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 36" x 48" |
Platform
Size W x L : 48" x 60" |
Shipping Weight:
1135 lbs
|
|
Model
Number : AXS60 Series | |||||||
|
Model
Number : AXS60-4848 |
Load
Capacity : 6000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 48" x 48" |
Platform
Size W x L : 48" x 48" |
Shipping Weight:
1070 lbs
|
|
Model
Number : AXS60-4856 |
Load
Capacity : 6000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 48" x 48" |
Platform
Size W x L : 48" x 56" |
Shipping Weight:
1315 lbs
|
|
Model
Number : AXS60-4860 |
Load
Capacity : 6000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 48" x 48" |
Platform
Size W x L : 48" x 60" |
Shipping Weight:
1335 lbs
|
|
Model
Number : AXS80 Series | |||||||
|
Model
Number : AXS80-4848 |
Load
Capacity : 8000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 48" x 48" |
Platform
Size W x L : 48" x 48" |
Shipping Weight:
1340 lbs
|
|
Model
Number : AXS80-4856 |
Load
Capacity : 8000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 48" x 48" |
Platform
Size W x L : 48" x 56" |
Shipping Weight:
1415 lbs
|
|
Model
Number : AXS80-4860 |
Load
Capacity : 8000 lbs |
Raised
Height : 36" |
Lowered
Height : 12" |
Vertical
Travel : 24" |
Base
Size W xL : 48" x 48" |
Platform
Size W x L : 48" x 60" |
Shipping Weight:
1435 lbs
|
Share this product
- Standard Capacities: 2,000, 4,000, and 8,000 lbs.
- Standard Platforms Range from 36" x 48" up to 48" x 60"
- Custom Platform Available
- Low Height: 12" - Raised Height: 36" - Vertical Travel: 24"
- Air Requirements: 80 PSI at 15 CFM
- Transportable Versions are Available
- No Floor Lagging Required
