AXR Series Turntable Lifts

These pneumatic lift tables feature an integrated turntable platform that allows workers to rotate loads for access to all sides without walking around the lift. This is especially helpful in manufacturing and assembly when tools are only available on one side of the lift table. In palletizing applications it eliminates the need to stretch for boxes on the farside or walking around the load.

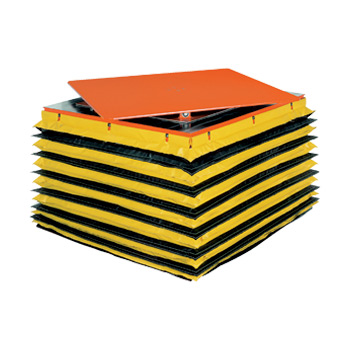

Unit shown with optional accordian bellows skirting.

AXR Series Pneumatic Turntable Lift with Optional Accordion Skirting

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		Vertical
Travel 		Base
Size W xL 		Platform
Size W x L 		Shipping Weight
Model
Number : AXR10 Series
Model
Number : AXR10-3648
Load
Capacity : 1000 lbs
Raised
Height : 32"
Lowered
Height : 11"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 36" x 48"
Shipping Weight: 1055 lbs
Model
Number : AXR10-4848
Load
Capacity : 1000 lbs
Raised
Height : 32"
Lowered
Height : 11"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1185 lbs
Model
Number : AXR10-4856
Load
Capacity : 1000 lbs
Raised
Height : 32"
Lowered
Height : 11"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1280 lbs
Model
Number : AXR10-4860
Load
Capacity : 1000 lbs
Raised
Height : 32"
Lowered
Height : 11"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1320 lbs
Model
Number : AXR20 Series
Model
Number : AXR20-3648
Load
Capacity : 2000 lbs
Raised
Height : 35"
Lowered
Height : 11"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 36" x 48"
Shipping Weight: 1155 lbs
Model
Number : AXR20-4848
Load
Capacity : 2000 lbs
Raised
Height : 35"
Lowered
Height : 11"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1295 lbs
Model
Number : AXR20-4856
Load
Capacity : 2000 lbs
Raised
Height : 35"
Lowered
Height : 11"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1385 lbs
Model
Number : AXR20-4860
Load
Capacity : 2000 lbs
Raised
Height : 35"
Lowered
Height : 11"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1450 lbs
Model
Number : AXR40 Series
Model
Number : AXR40-4848
Load
Capacity : 4000 lbs
Raised
Height : 35"
Lowered
Height : 11"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1420 lbs
Model
Number : AXR40-4856
Load
Capacity : 4000 lbs
Raised
Height : 35"
Lowered
Height : 11"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1550 lbs
Model
Number : AXR40-4860
Load
Capacity : 4000 lbs
Raised
Height : 35"
Lowered
Height : 11"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1595 lbs

Share this product

  • Available in 1,000. 2,000 and 4,000 lb. capacities
  • Turntable fabricated from solid steel plate
  • Anti-Friction bearings for easy platform rotation
  • Standard Pedestal Controls - Foot Controls Optional
  • Pressure Relief Valve is standard
  • Lifetime Warranty on actuator
  • Air Requirements: 80 PSI at 15 CFM
Download - General Catalog
