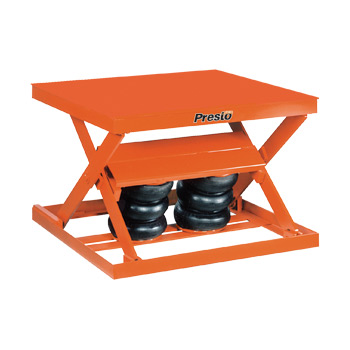

AX Series Standard-Duty Pneumatic Scissor Lifts

These pneumatic scissor lift tables achieve lift via a heavy-duty airbag system. They require no electricity and can be used anywhere that shop air is available.

Typically pneumatic lift tables require less maintenance than conventional lift tables and because there is no hydraulic fluid there is no potential for process contamination.

Lifting and lowering is controlled by a standard pedestal control. Foot control is available as a standard option.

A pressure relief valve is standard and actuators come with a lifetime warranty.

AX Series Pneumatic Scissor Lift

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		Vertical
Travel 		Base
Size W xL 		Platform
Size W x L 		Shipping Weight
Model
Number : AX10 Series
Model
Number : AX10-3648
Load
Capacity : 1000 lbs
Raised
Height : 29"
Lowered
Height : 8"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 36" x 48"
Shipping Weight: 820 lbs
Model
Number : AX10-4848
Load
Capacity : 1000 lbs
Raised
Height : 29"
Lowered
Height : 8"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 890 lbs
Model
Number : AX10-4856
Load
Capacity : 1000 lbs
Raised
Height : 29"
Lowered
Height : 8"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 935 lbs
Model
Number : AX10-4860
Load
Capacity : 1000 lbs
Raised
Height : 29"
Lowered
Height : 8"
Vertical
Travel : 21"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 960 lbs
Model
Number : AX20 Series
Model
Number : AX20-3648
Load
Capacity : 2000 lbs
Raised
Height : 32"
Lowered
Height : 8"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 36" x 48"
Shipping Weight: 855 lbs
Model
Number : AX20-4848
Load
Capacity : 2000 lbs
Raised
Height : 32"
Lowered
Height : 8"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 915 lbs
Model
Number : AX20-4856
Load
Capacity : 2000 lbs
Raised
Height : 32"
Lowered
Height : 8"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 955 lbs
Model
Number : AX20-4860
Load
Capacity : 2000 lbs
Raised
Height : 32"
Lowered
Height : 8"
Vertical
Travel : 24"
Base
Size W xL : 36" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1040 lbs
Model
Number : AX40 Series
Model
Number : AX40-4848
Load
Capacity : 4000 lbs
Raised
Height : 32"
Lowered
Height : 8"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 48"
Shipping Weight: 1040 lbs
Model
Number : AX40-4856
Load
Capacity : 4000 lbs
Raised
Height : 32"
Lowered
Height : 8"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 56"
Shipping Weight: 1115 lbs
Model
Number : AX40-4860
Load
Capacity : 4000 lbs
Raised
Height : 32"
Lowered
Height : 8"
Vertical
Travel : 24"
Base
Size W xL : 48" x 48"
Platform
Size W x L : 48" x 60"
Shipping Weight: 1135 lbs

Share this product

  • Standard Capacities: 1,000, 2,000, and 4,000 lbs.
  • Standard Platforms Range from 36" x 48" up to 48" x 60"
  • Custom Platform Available
  • Low Height: 8" - Raised Height: 29" - Vertical Travel: 21"
  • Air Requirements: 80 PSI at 15 CFM
  • Floor Lagging is Required
