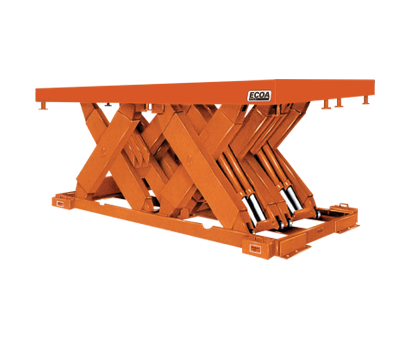

MLTQD Series Double Wide/Double Long Scissor Lifts

MLTQD Series Lift Tables take heavy-duty lifting to another level of capability. These extra-heavy-duty electrohydraulic scissor lifts have capacities of 50,000 to 120,000 lbs., travel distances of 30 to 72 in. with platform sizes of 96 x 120 to 120 x 264 in.

Super Heavy Duty Double Wide /Double Long Hydraulic Lift Tables

Vertical
Travel		Model
Number 		Capacity End/Side
Capacity 		Standard
Platform 		Max
Platform 		Base Low
Height 		Raised
Height 		Lifting
Speed		Motor
HP 		Shipping
Weight
Vertical
Travel: 36
Model
Number : MLTQD-80-36
Capacity : 80000
End/Side
Capacity : 64000
Standard
Platform : 96 x 120
Max
Platform : 120 x 168
Base : 96 x 120
Low
Height : 20
Raised
Height : 56
Lifting
Speed: 80
Motor
HP : 10
Shipping
Weight: 15000
Vertical
Travel: 36
Model
Number : MLTQD-120-36
Capacity : 120000
End/Side
Capacity : 96000
Standard
Platform : 96 x 120
Max
Platform : 120 x 168
Base : 96 x 120
Low
Height : 20
Raised
Height : 56
Lifting
Speed: 110
Motor
HP : 10
Shipping
Weight: 15600
Vertical
Travel: 48
Model
Number : MLTQD-80-48
Capacity : 80000
End/Side
Capacity : 64000
Standard
Platform : 96 x 144
Max
Platform : 120 x 192
Base : 96 x 144
Low
Height : 20
Raised
Height : 68
Lifting
Speed: 80
Motor
HP : 10
Shipping
Weight: 16200
Vertical
Travel: 48
Model
Number : MLTQD-120-48
Capacity : 120000
End/Side
Capacity : 96000
Standard
Platform : 96 x 144
Max
Platform : 120 x 192
Base : 96 x 144
Low
Height : 20
Raised
Height : 68
Lifting
Speed: 110
Motor
HP : 10
Shipping
Weight: 17200
Vertical
Travel: 60
Model
Number : MLTQD-80-60
Capacity : 80000
End/Side
Capacity : 64000
Standard
Platform : 96 x 168
Max
Platform : 120 x 216
Base : 96 x 168
Low
Height : 20
Raised
Height : 80
Lifting
Speed: 120
Motor
HP : 10
Shipping
Weight: 16800
Vertical
Travel: 60
Model
Number : MLTQD-120-60
Capacity : 120000
End/Side
Capacity : 96000
Standard
Platform : 96 x 168
Max
Platform : 120 x 216
Base : 96 x 168
Low
Height : 20
Raised
Height : 80
Lifting
Speed: 120
Motor
HP : 15
Shipping
Weight: 18000
Vertical
Travel: 72
Model
Number : MLTQD-80-30
Capacity : 80000
End/Side
Capacity : 64000
Standard
Platform : 96 x 216
Max
Platform : 120 x 264
Base : 96 x 216
Low
Height : 16
Raised
Height : 88
Lifting
Speed: 120
Motor
HP : 10
Shipping
Weight: 20000
Vertical
Travel: 72
Model
Number : MLTQD-120-30
Capacity : 120000
End/Side
Capacity : 96000
Standard
Platform : 96 x 216
Max
Platform : 120 x 264
Base : 96 x 216
Low
Height : 16
Raised
Height : 88
Lifting
Speed: 120
Motor
HP : 15
Shipping
Weight: 20800

Share this product

  • Externally-mounted power unit
  • Pushbutton pendant control
  • 24V operating control voltage
  • Upper travel limit switch plus 8 mechanical back-up stops.
  • Rectangular structural tube scissor legs and torque tubes for maximum stability and minimal deflection
  • Dual safety restraint maintenance bars
  • Cylinder rod end protectors
  • Flow Limiter Valve at cylinder bases
  • Double wire braid pressure hoses
