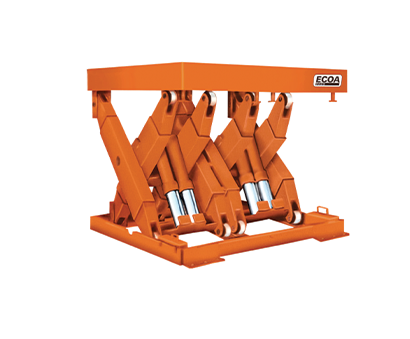

MLTDW Series Double Wide Scissor Lifts

ECOA MLTDW Series Lift Tables are double wide, high-capacity heavy-duty electrohydraulic scissor lifts with capacities of 25,000 to 60,000 lbs., travel distances of 30 to 72 in. with platform sizes of 96 x 60 to 120 x 132 in. or platform sizes to fit your applications.

Super Heavy Duty Double Wide Hydraulic Lift Tables

Vertical
Travel		Model
Number 		Capacity End/Side
Capacity 		Standard
Platform 		Max
Platform 		Base Low
Height 		Raised
Height 		Lifting
Speed		Motor
HP 		Shipping
Weight
Vertical
Travel: 36
Model
Number : MLTDW-30-36
Capacity : 30000
End/Side
Capacity : 24000
Standard
Platform : 96 x 60
Max
Platform : 120 x 84
Base : 96 x 60
Low
Height : 16
Raised
Height : 52
Lifting
Speed: 32
Motor
HP : 5
Shipping
Weight: 7200
Vertical
Travel: 36
Model
Number : MLTDW-40-36
Capacity : 40000
End/Side
Capacity : 32000
Standard
Platform : 96 x 60
Max
Platform : 120 x 84
Base : 96 x 60
Low
Height : 20
Raised
Height : 56
Lifting
Speed: 55
Motor
HP : 5
Shipping
Weight: 7500
Vertical
Travel: 36
Model
Number : MLTDW-60-30
Capacity : 60000
End/Side
Capacity : 48000
Standard
Platform : 96 x 60
Max
Platform : 120 x 84
Base : 96 x 60
Low
Height : 20
Raised
Height : 56
Lifting
Speed: 75
Motor
HP : 5
Shipping
Weight: 7800
Vertical
Travel: 48
Model
Number : MLTDW-30-48
Capacity : 30000
End/Side
Capacity : 24000
Standard
Platform : 96 x 72
Max
Platform : 120 x 96
Base : 96 x 72
Low
Height : 16
Raised
Height : 64
Lifting
Speed: 30
Motor
HP : 5
Shipping
Weight: 7500
Vertical
Travel: 48
Model
Number : MLTDW-40-48
Capacity : 40000
End/Side
Capacity : 32000
Standard
Platform : 96 x 72
Max
Platform : 120 x 96
Base : 96 x 72
Low
Height : 20
Raised
Height : 68
Lifting
Speed: 55
Motor
HP : 5
Shipping
Weight: 8100
Vertical
Travel: 48
Model
Number : MLTDW-60-48
Capacity : 60000
End/Side
Capacity : 48000
Standard
Platform : 96 x 72
Max
Platform : 120 x 96
Base : 96 x 72
Low
Height : 20
Raised
Height : 68
Lifting
Speed: 75
Motor
HP : 5
Shipping
Weight: 8600
Vertical
Travel: 60
Model
Number : MLTDW-30-60
Capacity : 30000
End/Side
Capacity : 24000
Standard
Platform : 96 x 84
Max
Platform : 120 x 108
Base : 96 x 84
Low
Height : 16
Raised
Height : 76
Lifting
Speed: 45
Motor
HP : 5
Shipping
Weight: 8000
Vertical
Travel: 60
Model
Number : MLTDW-40-60
Capacity : 40000
End/Side
Capacity : 32000
Standard
Platform : 96 x 84
Max
Platform : 120 x 108
Base : 96 x 84
Low
Height : 20
Raised
Height : 80
Lifting
Speed: 80
Motor
HP : 5
Shipping
Weight: 8400
Vertical
Travel: 60
Model
Number : MLTDW-60-60
Capacity : 60000
End/Side
Capacity : 48000
Standard
Platform : 96 x 84
Max
Platform : 120 x 108
Base : 96 x 84
Low
Height : 20
Raised
Height : 80
Lifting
Speed: 100
Motor
HP : 7.5
Shipping
Weight: 9000
Vertical
Travel: 72
Model
Number : MLTDW-30-72
Capacity : 30000
End/Side
Capacity : 24000
Standard
Platform : 96 x 108
Max
Platform : 120 x 132
Base : 96 x 108
Low
Height : 16
Raised
Height : 88
Lifting
Speed: 45
Motor
HP : 5
Shipping
Weight: 9700
Vertical
Travel: 72
Model
Number : MLTDW-40-72
Capacity : 40000
End/Side
Capacity : 32000
Standard
Platform : 96 x 108
Max
Platform : 120 x 132
Base : 96 x 108
Low
Height : 20
Raised
Height : 92
Lifting
Speed: 80
Motor
HP : 5
Shipping
Weight: 10000
Vertical
Travel: 72
Model
Number : MLTDW-60-72
Capacity : 60000
End/Side
Capacity : 48000
Standard
Platform : 96 x 108
Max
Platform : 120 x 132
Base : 96 x 108
Low
Height : 20
Raised
Height : 92
Lifting
Speed: 100
Motor
HP : 7.5
Shipping
Weight: 10400

Share this product

  • Externally-mounted power unit
  • Pushbutton pendant control
  • 24V operating control voltage
  • Upper travel limit switch plus 8 mechanical back-up stops.
  • Rectangular structural tube scissor legs and torque tubes for maximum stability and minimal deflection
  • Dual safety restraint maintenance bars
  • Cylinder rod end protectors
  • Flow Limiter Valve at cylinder bases
  • Double wire braid pressure hoses
