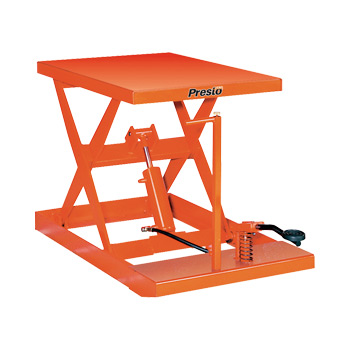

Light-Duty Manual Scissor Lift Table

Designed and built for light-duty lifting and positioning tasks, these foot pump operated hydraulic scissor lifts offer a dependable, low-cost solution for intermittent duty cycles.

Capacities of 1,000, 1,500 or 2,000 lbs.  are available.

Platform sizes range from 24" x 36" up to 48" x 54" are available.

XF Series Light Duty Manual Foot Pump Scissor Lift

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		End/Side
Capacity		Standard
Platform		Maximum
Platform 		Lifting
Strokes		Shipping
Weight
Model
Number : XF24 Series
Model
Number : XF24-10
Load
Capacity : 1000 lbs
Raised
Height : 29"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 24 x 36"
Maximum
Platform : 36 x 42"
Lifting
Strokes: 35
Shipping
Weight: 390 lbs
Model
Number : XF24-15
Load
Capacity : 1500 lbs
Raised
Height : 29"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 24 x 36"
Maximum
Platform : 36 x 42"
Lifting
Strokes: 55
Shipping
Weight: 395 lbs
Model
Number : XF24-20
Load
Capacity : 2000 lbs
Raised
Height : 31"
Lowered
Height : 7 ¼"
End/Side
Capacity: 2000 lbs
Standard
Platform: 24 x 36"
Maximum
Platform : 48 x 60"
Lifting
Strokes: 85
Shipping
Weight: 500 lbs
Model
Number : XF36 Series
Model
Number : XF36-10
Load
Capacity : 1000 lbs
Raised
Height : 41"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 24 x 48"
Maximum
Platform : 36 x 54"
Lifting
Strokes: 46
Shipping
Weight: 440 lbs
Model
Number : XF36-15
Load
Capacity : 1500 lbs
Raised
Height : 41"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 24 x 48"
Maximum
Platform : 36 x 54"
Lifting
Strokes: 69
Shipping
Weight: 455 lbs
Model
Number : XF36-20
Load
Capacity : 2000 lbs
Raised
Height : 43"
Lowered
Height : 7 ¼"
End/Side
Capacity: 2000 lbs
Standard
Platform: 24 x 48"
Maximum
Platform : 48 x 72"
Lifting
Strokes: 130
Shipping
Weight: 650 lbs
Model
Number : WXF24 Series
Model
Number : WXF24-10
Load
Capacity : 1000 lbs
Raised
Height : 29 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 36 x 36"
Maximum
Platform : 48 x 42"
Lifting
Strokes: 35
Shipping
Weight: 430 lbs
Model
Number : WXF24-15
Load
Capacity : 1500 lbs
Raised
Height : 29 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 36 x 36"
Maximum
Platform : 48 x 42"
Lifting
Strokes: 55
Shipping
Weight: 435 lbs
Model
Number : WXF36 Series
Model
Number : WXF36-10
Load
Capacity : 1000 lbs
Raised
Height : 41 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 36 x 48"
Maximum
Platform : 48 x 54"
Lifting
Strokes: 46
Shipping
Weight: 480 lbs
Model
Number : WXF36-15
Load
Capacity : 1500 lbs
Raised
Height : 41 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 36 x 48"
Maximum
Platform : 48 x 54"
Lifting
Strokes: 69
Shipping
Weight: 485 lbs

Share this product

  • 1,000, 1,500 and 2,000 lb. capacities
  • Hydraulic lift operated by foot pump
  • Hand-controlled release for lowering
  • 1/2" thick steel scissor legs - 1,000 & 1,500 lb. units
  • 3/4" thick steel scissor legs - 2,000 lb. units
  • Wide-base models - up to 36" x 48" available
  • Oversized & custom platforms available
  • Hinged platform allows easy access to cylinders
  • Chrome-plated ram cylinders
