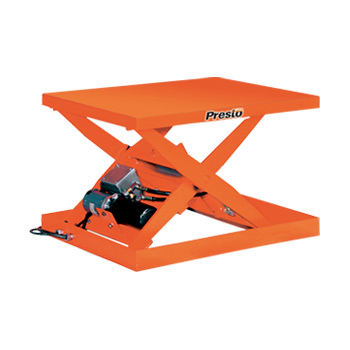

Light-Duty Electric Scissor Lift Table

A 1/3 HP electric motor adds the convenience of power lifting to this intermittent duty cycle hydraulic scissor lift. Choose 1,000 lb. or 1,500 lb. capacity with 24" or 36" of travel.

Platforms from 24" x 36" up to 48" x 60" are available.

Quick Ship option on select models and sizes, see offer details here.

Quick Ship Eligible
XS Series Light Duty Electric Scissor Lift

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		End/Side
Capacity		Standard
Platform		Maximum
Platform 		Lifting
Strokes		Shipping
Weight
Model
Number : XS24 Series - 24" Travel - 24"W x 36"L Platform
Model
Number : XS24-10
Load
Capacity : 1000 lbs
Raised
Height : 29"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 24 x 36"
Maximum
Platform : 36 x 48"
Lifting
Strokes: 18 sec
Shipping
Weight: 390 lbs
Model
Number : XS24-15
Load
Capacity : 1500 lbs
Raised
Height : 29"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 24 x 36"
Maximum
Platform : 36 x 48"
Lifting
Strokes: 23 sec
Shipping
Weight: 395 lbs
Model
Number : XS36 Series - 36" Travel - 24"W x 48"L Platform
Model
Number : XS36-10
Load
Capacity : 1000 lbs
Raised
Height : 41"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 24 x 48"
Maximum
Platform : 36 x 60"
Lifting
Strokes: 29 sec
Shipping
Weight: 425 lbs
Model
Number : XS36-15
Load
Capacity : 1500 lbs
Raised
Height : 41"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 24 x 48"
Maximum
Platform : 36 x 60"
Lifting
Strokes: 36 sec
Shipping
Weight: 430 lbs
Model
Number : WXS24 Series - 24" Travel - 36"W x 36"L Platform
Model
Number : WXS24-10
Load
Capacity : 1000 lbs
Raised
Height : 29 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 36 x 36"
Maximum
Platform : 48 x 48"
Lifting
Strokes: 18 sec
Shipping
Weight: 430 lbs
Model
Number : WXS24-15
Load
Capacity : 1500 lbs
Raised
Height : 29 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 36 x 36"
Maximum
Platform : 48 x 48"
Lifting
Strokes: 23 sec
Shipping
Weight: 435 lbs
Model
Number : WXS36 Series - 36" Travel - 36"W x 48"L Platform
Model
Number : WXS36-10
Load
Capacity : 1000 lbs
Raised
Height : 41 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1000 lbs
Standard
Platform: 36 x 48"
Maximum
Platform : 48 x 60"
Lifting
Strokes: 29 sec
Shipping
Weight: 455 lbs
Model
Number : WXS36-15
Load
Capacity : 1500 lbs
Raised
Height : 41 ¼"
Lowered
Height : 5 ¼"
End/Side
Capacity: 1500 lbs
Standard
Platform: 36 x 48"
Maximum
Platform : 48 x 60"
Lifting
Strokes: 36 sec
Shipping
Weight: 470 lbs

Share this product

  • 1,000 or 1,5000 pound capacity
  • Lift heights of 24" or 41"
  • Standard hand-control pendant
  • Easy-to-service internal power unit
  • 1/2" steel plate scissor legs
  • Powered up, powered down units
  • Hinged platform allows for easy access to cylinders
  • Internal 1/3 HP 115/1/60 power unit
  • Custom designs available
