XL Series Standard-Duty Scissor Lifts

Maximize worker productivity by positioning work at just the right level. Eliminate manual lifting, bending, and stretching to minimize fatigue, strain and injury.

XL Series Scissor Lifts with are available with 2,000, 4,000, 6,000, and 8,000 lbs. capacities. A variety of platform sizes and available options make these rugged, dependable scissor lifts perfect for just about any work positioning or assembly application.

Quick Ship option on select models and sizes, see offer details here.

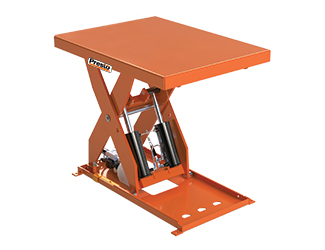

XL Series Standard Duty Scissor Lift Table
Extremely Stable Design
7.25" Lowered Height

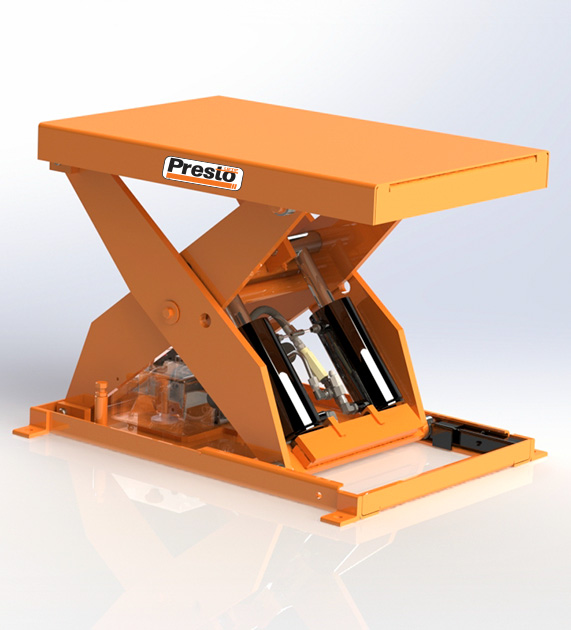

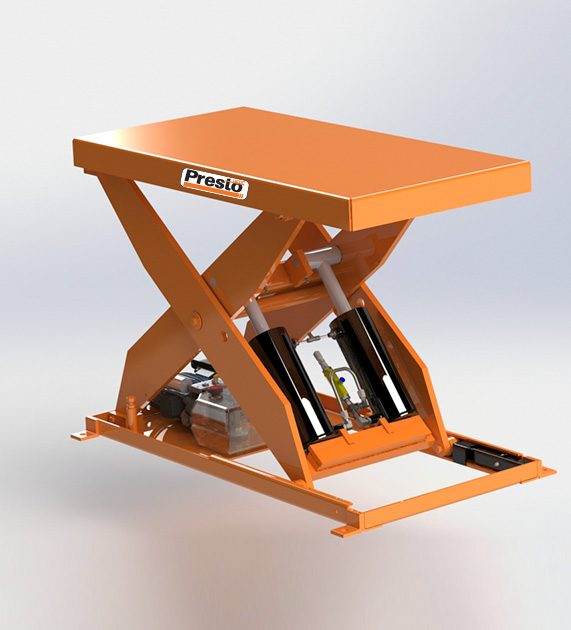

Lift with Maintenance Chock in Place
Standard Capacities from 2,000 lbs. - 8,000 lbs.
XL Lift with Conveyor Platform
Quick Ship Eligible
Semi-Live Configuration Used in Sheet Feeding

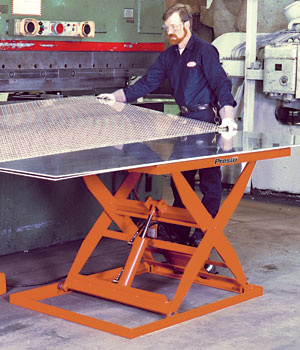

Ideal for Feeding Shears, Punches or Presses

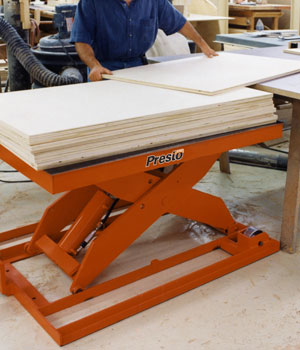

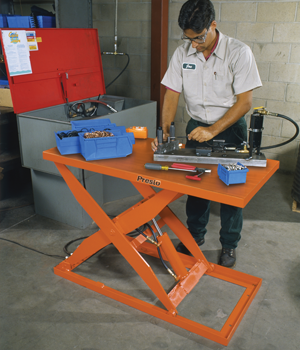

Used Widely for Assembly or Repair

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		End/Side
Capacity 		Std. Base
& Platform 		Maximum
Platform 		Lifting Speed Std. MotorStd. Voltage/
Phase/HZ 		Shipping
Weight
Model
Number : XL24 Series – 24" Travel
Model
Number : XL24-20
Load
Capacity : 2000 lbs
Raised
Height : 31 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 2000
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 48" x 60"
Lifting Speed : 17 sec
Std. Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 550 lbs
Model
Number : XL24-30
Load
Capacity : 3000 lbs
Raised
Height : 31 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3000
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 48" x 60"
Lifting Speed : 22 sec
Std. Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 560 lbs
Model
Number : XL24-40
Load
Capacity : 4000 lbs
Raised
Height : 31 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 4000
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 48" x 60"
Lifting Speed : 34 sec
Std. Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 570 lbs
Model
Number : XL24-60
Load
Capacity : 6000 lbs
Raised
Height : 31 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 4500
Std. Base
& Platform : 24" x 36"
Maximum
Platform : 48" x 60"
Lifting Speed : 44 sec
Std. Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 620 lbs
Model
Number : XL36 Series – 36" Travel
Model
Number : XL36-20
Load
Capacity : 2000 lbs
Raised
Height : 43 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 2000
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 48" x 72"
Lifting Speed : 25 sec
Std. Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 690 lbs
Model
Number : XL36-30
Load
Capacity : 3000 lbs
Raised
Height : 43 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3000
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 48" x 72"
Lifting Speed : 33 sec
Std. Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 720 lbs
Model
Number : XL36-40
Load
Capacity : 4000 lbs
Raised
Height : 43 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3500
Std. Base
& Platform : 24" x 48"
Maximum
Platform : 48" x 72"
Lifting Speed : 50 sec
Std. Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 750 lbs
Model
Number : XL36-50
Load
Capacity : 5000 lbs
Raised
Height : 43 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3500
Std. Base
& Platform : 24" x 48"
Maximum
Platform :  48" x 72"
Lifting Speed : 18 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 208-230/460
Shipping
Weight: 770 lbs
Model
Number : XL36-60
Load
Capacity : 6000 lbs
Raised
Height : 43 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3500
Std. Base
& Platform : 24" x 48"
Maximum
Platform :  48" x 72"
Lifting Speed : 20 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 208-230/460
Shipping
Weight: 790 lbs
Model
Number : XL36-80
Load
Capacity : 8000 lbs
Raised
Height : 45"
Lowered
Height : 9"
End/Side
Capacity : 4000
Std. Base
& Platform : 30" x 60"
Maximum
Platform :  54" x 84"
Lifting Speed : 21 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1350 lbs
Model
Number : XL48 Series – 48" Travel
Model
Number : XL48-20
Load
Capacity : 2000 lbs
Raised
Height : 55 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 2000
Std. Base
& Platform : 24" x 64"
Maximum
Platform : 48" x 88"
Lifting Speed : 10 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 208-230/460
Shipping
Weight: 850 lbs
Model
Number : XL48-30
Load
Capacity : 3000 lbs
Raised
Height : 55 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3000
Std. Base
& Platform : 24" x 64"
Maximum
Platform : 48" x 88"
Lifting Speed : 13 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 208-230/460
Shipping
Weight: 875 lbs
Model
Number : XL48-40
Load
Capacity : 4000 lbs
Raised
Height : 55 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3500
Std. Base
& Platform : 24" x 64"
Maximum
Platform : 48" x 88"
Lifting Speed : 20 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 208-230/460
Shipping
Weight: 900 lbs
Model
Number : XL48-60
Load
Capacity : 6000 lbs
Raised
Height : 55 ¼"
Lowered
Height : 7 ¼"
End/Side
Capacity : 3500
Std. Base
& Platform : 24" x 64"
Maximum
Platform : 48" x 88"
Lifting Speed : 26 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 208-230/460
Shipping
Weight: 950 lbs
Model
Number : XL48-80
Load
Capacity : 8000 lbs
Raised
Height : 57"
Lowered
Height : 9"
End/Side
Capacity : 4000
Std. Base
& Platform : 24" x 66"
Maximum
Platform : 48" x 96"
Lifting Speed : 30 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1350 lbs
Model
Number : XL60 Series – 60" Travel
Model
Number : XL60-20
Load
Capacity : 2000 lbs
Raised
Height : 70"
Lowered
Height : 10"
End/Side
Capacity : 1000
Std. Base
& Platform : 24" x 86"
Maximum
Platform : 48" x 120"
Lifting Speed : 10 sec
Std. Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1300 lbs

XL Series Lift Tables can be modified with a variety of options and accessories

GRAVITY CONVEYOR TOPS
Roller conveyor mounted to platform transferring item on or off of lift. For integration with conveyor systems.
BALL TRANSFER TOPS
Platforms can be supplied with pneumatic ball transfers to allow for easy repositioning of items for access to all sides or transferring loads on to or off of lifts.
FORK POCKETS
Allow lift to be easily picked up and moved with a fork lift.
PORTABILITY / SEMI-LIVE ARRANGEMENT
A variety of portability options are available including 4 casters, or semi-live with skid spotter
ACCORDIAN / BELLOWS SKIRT
Vinyl pleated covering in yellow and black keeps debris from collecting under lift platform
PIT MOUNTED UNITS
Lifts can be configured for use in a pit. This allows the platform to sit flush with the floor when not in use to minimize obstructions.
OVERSIZED PLATFORMS
Platforms larger than standard are available. See chart above for MAX Platform dimensions.
12V DC & 24V DC POWER UNITS
Lifts can be configured for DC power with 12 volt or 24 volt motors.
SUPER CYCLE
For extremely high duty cycles lifts can be equipped with a Super Cycle Package that extends recommend time between maintenance to 200,000 cycles
LOWER LEVEL LIMIT SWITCH
prevents the lift table from traveling below a preset level.
VELOCITY FUSE
Prevents lift from falling should hydraulic hoses be accidentally severed.
UPPER TRAVEL LIMIT SWITCH
Prevents lift from traveling past a preset height.
WATER WASH DOWN MOTOR PACKAGE
NEMA 4 motor for use in wash down applications.
OPTIONAL POWER UNIT UPGRADES
Motor upgrades for increased lifting speed

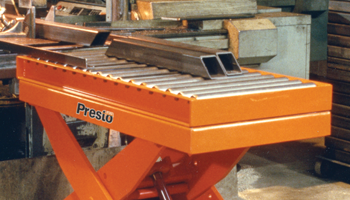

Conveyor Top BGRAVITY CONVEYOR TOPS
Roller conveyor mounted to platform transferring item on or off of lift. For integration with conveyor systems.




Ball Transfer TopBALL TRANSFER TOPS
Platforms can be supplied with pneumatic ball transfers to allow for easy repositioning of items for access to all sides or transferring loads on to or off of lifts.

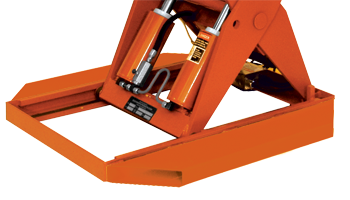

Fork Pockets BFORK POCKETS
Allow lift to be easily picked up and moved with a fork lift.



portable Semi Live

PORTABILITY / SEMI-LIVE ARRANGEMENT
A variety of portability options are available including 4 casters, or semi-live with skid spotter



Accordian (bellows Skirt)

ACCORDIAN / BELLOWS SKIRT
Vinyl pleated covering in yellow and black keeps debris from collecting under lift platform



PIT MOUNTED UNITS
Lifts can be configured for use in a pit. This allows the platform to sit flush with the floor when not in use to minimize obstructions.



OVERSIZED PLATFORMS
Platforms larger than standard are available. See chart above for MAX Platform dimensions.



12V DC & 24V DC POWER UNITS
Lifts can be configured for DC power with 12 volt or 24 volt motors.



SUPER CYCLE
For extremely high duty cycles lifts can be equipped with a Super Cycle Package that extends recommend time between maintenance to 200,000 cycles



LOWER LEVEL LIMIT SWITCH
prevents the lift table from traveling below a preset level.



VELOCITY FUSE
Prevents lift from falling should hydraulic hoses be accidentally severed.





UPPER TRAVEL LIMIT SWITCH
Prevents lift from traveling past a preset height.



WATER WASH DOWN MOTOR PACKAGE
NEMA 4 motor for use in wash down applications.



OPTIONAL POWER UNIT UPGRADES
Motor upgrades for increased lifting speed

Share this product

  • Choose 24", 36", 48", or 60" vertical travel
  • Hand control pendant (foot control option available)
  • Heavy-duty hydraulic cylinders with chrome plated rams
  • Polyurethane seals on cylinders
  • Rugged 3/4" steel plate scissor legs
  • Lifetime lubricated bearing on all rollers and pivot points
  • Hinged platform for convenient cylinder access
