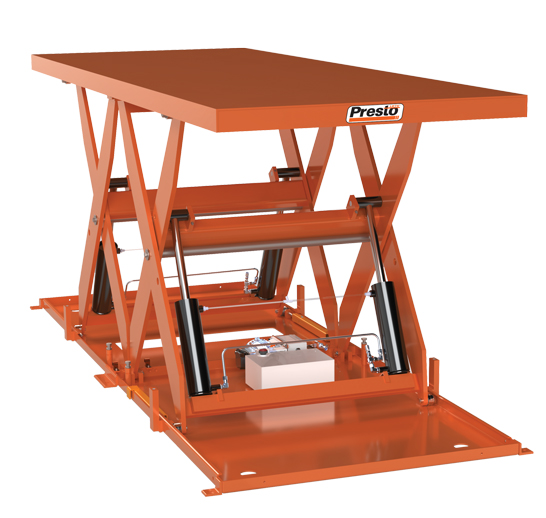

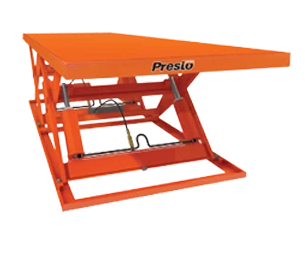

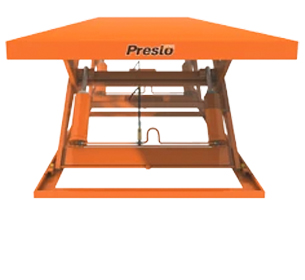

Tandem Scissor Lift

Maximize worker and productivity by positioning work at just the right level. Eliminate manual lifting, bending, and stretching to minimize fatigue, strain and injury.

XL Series Scissor Lifts with are available with 2,000, 4,000, 6,000, and 8,000 lb. capacities. A variety of platform sizes and available options make these rugged, dependable scissor lifts perfect for just about any work positioning or assembly application.

Tandem Scissor Lift for Handling Long Loads
Maximum Platforms up to 204" Long
Platform Widths up 84" Wide

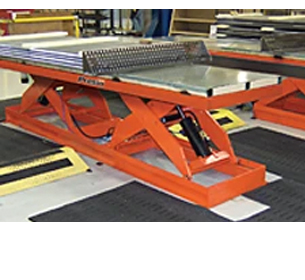

Tandem Lifts in use

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		End/Side
Capacity 		Std. Base
& Platform 		Maximum
Platform 		Lifting
Speed 		Std.
Motor		Std. Voltage/
Phase/HZ 		Shipping
Weight
Model
Number : XL36T Series – 36" Travel
Model
Number : XL36T-40
Load
Capacity : 4000 lbs
Raised
Height : 43"
Lowered
Height : 7 ¼"
End/Side
Capacity : 24" x 96"
Std. Base
& Platform : 24" x 96"
Maximum
Platform : 48" x 120"
Lifting
Speed : 34 sec
Std.
Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 1280 lbs
Model
Number : XL36T-80
Load
Capacity : 8000 lbs
Raised
Height : 43"
Lowered
Height : 7 ¼"
End/Side
Capacity : 24" x 96"
Std. Base
& Platform : 24" x 96"
Maximum
Platform : 48" x 120"
Lifting
Speed : 44 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1340 lbs
Model
Number : XL36T-120
Load
Capacity : 12000 lbs
Raised
Height : 43"
Lowered
Height : 7 ¼"
End/Side
Capacity : 24" x 96"
Std. Base
& Platform : 24" x 96"
Maximum
Platform : 48" x 120"
Lifting
Speed : 60 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1400 lbs
Model
Number : XL48T Series – 48" Travel
Model
Number : XL48T-40
Load
Capacity : 4000 lbs
Raised
Height : 55"
Lowered
Height : 7 ¼"
End/Side
Capacity : 24" x 128"
Std. Base
& Platform : 24" x 128"
Maximum
Platform : 48" x 168"
Lifting
Speed : 28 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1600 lbs
Model
Number : XL48T-80
Load
Capacity : 8000 lbs
Raised
Height : 55"
Lowered
Height : 7 ¼"
End/Side
Capacity : 24" x 128"
Std. Base
& Platform : 24" x 128"
Maximum
Platform : 48" x 168"
Lifting
Speed : 64 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1700 lbs
Model
Number : XL48T-120
Load
Capacity : 12000 lbs
Raised
Height : 55"
Lowered
Height : 7 ¼"
End/Side
Capacity : 24" x 128"
Std. Base
& Platform : 24" x 128"
Maximum
Platform : 48" x 168"
Lifting
Speed : 78 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1800 lbs
Model
Number : XL60T Series – 60" Travel
Model
Number : XL60T-40
Load
Capacity : 4000 lbs
Raised
Height : 70"
Lowered
Height : 10"
End/Side
Capacity : 24" x 172"
Std. Base
& Platform : 24" x 172"
Maximum
Platform : 48" x 204"
Lifting
Speed : 20 sec
Std.
Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 2500 lbs
Model
Number : XL60T-80
Load
Capacity : 8000 lbs
Raised
Height : 70"
Lowered
Height : 10"
End/Side
Capacity : 24" x 172"
Std. Base
& Platform : 24" x 172"
Maximum
Platform : 48" x 204"
Lifting
Speed : 40 sec
Std.
Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 2650 lbs
Model
Number : XL60T-120
Load
Capacity : 12000 lbs
Raised
Height : 70"
Lowered
Height : 10"
End/Side
Capacity : 24" x 172"
Std. Base
& Platform : 24" x 172"
Maximum
Platform : 48" x 204"
Lifting
Speed : 60 sec
Std.
Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 2750 lbs
Model
Number : X3W36T Wide Base Series - 36" Travel
Model
Number : X3W36T-40
Load
Capacity : 4000 lbs
Raised
Height : 43"
Lowered
Height : 7 ¾"
End/Side
Capacity : 36" x 96"
Std. Base
& Platform : 36" x 96"
Maximum
Platform : 60" x 120"
Lifting
Speed : 48 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1620 lbs
Model
Number : X3W36T-80
Load
Capacity : 8000 lbs
Raised
Height : 43"
Lowered
Height : 7 ¾"
End/Side
Capacity : 36" x 96"
Std. Base
& Platform : 36" x 96"
Maximum
Platform : 60" x 120"
Lifting
Speed : 50 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1700 lbs
Model
Number : X3W36T-120
Load
Capacity : 12000 lbs
Raised
Height : 43"
Lowered
Height : 7 ¾"
End/Side
Capacity : 36" x 96"
Std. Base
& Platform : 36" x 96"
Maximum
Platform : 60" x 120"
Lifting
Speed : 52 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1820 lbs
Model
Number : X4W48T Wide Base Series - 48" Travel
Model
Number : X4W48T-40
Load
Capacity : 4000 lbs
Raised
Height : 55"
Lowered
Height : 7 ¾"
End/Side
Capacity : 48" x 128"
Std. Base
& Platform : 48" x 128"
Maximum
Platform : 72" x 168"
Lifting
Speed : 64 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 2120 lbs
Model
Number : X4W48T-80
Load
Capacity : 8000 lbs
Raised
Height : 55"
Lowered
Height : 7 ¾"
End/Side
Capacity : 48" x 128"
Std. Base
& Platform : 48" x 128"
Maximum
Platform : 72" x 168"
Lifting
Speed : 68 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 2220 lbs
Model
Number : X4W48T-120
Load
Capacity : 12000 lbs
Raised
Height : 55"
Lowered
Height : 7 ¾"
End/Side
Capacity : 48" x 128"
Std. Base
& Platform : 48" x 128"
Maximum
Platform : 72" x 168"
Lifting
Speed : 76 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 2400 lbs

Tandem Scissor Lift Tables can be modified with a variety of options and accessories

GRAVITY CONVEYOR TOPS
Roller conveyor mounted to platform transferring item on or off of lift. For integration with conveyor systems.
BALL TRANSFER TOPS
Platforms can be supplied with pneumatic ball transfers to allow for easy repositioning of items for access to all sides or transferring loads on to or off of lifts.
FORK POCKETS
Allow lift to be easily picked up and moved with a fork lift.
PORTABILITY / SEMI-LIVE ARRANGEMENT
A variety of portability options are available including 4 casters, or semi-live with skid spotter
ACCORDIAN / BELLOWS SKIRT
Vinyl pleated covering in yellow and black keeps debris from collecting under lift platform
PIT MOUNTED UNITS
Lifts can be configured for use in a pit. This allows the platform to sit flush with the floor when not in use to minimize obstructions.
OVERSIZED PLATFORMS
Platforms larger than standard are available. See chart above for MAX Platform dimensions.
12V DC & 24V DC POWER UNITS
Lifts can be configured for DC power with 12 volt or 24 volt motors.
SUPER CYCLE
For extremely high duty cycles lifts can be equipped with a Super Cycle Package that extends recommend time between maintenance to 200,000 cycles
LOWER LEVEL LIMIT SWITCH
prevents the lift table from traveling below a preset level.
VELOCITY FUSE
Prevents lift from falling should hydraulic hoses be accidentally severed.
UPPER TRAVEL LIMIT SWITCH
Prevents lift from traveling past a preset height.
WATER WASH DOWN MOTOR PACKAGE
NEMA 4 motor for use in wash down applications.
OPTIONAL POWER UNIT UPGRADES
Motor upgrades for increased lifting speed

Share this product

  • Choose 24", 36", 48", or 60" vertical travel
  • Hand control pendant (foot control option available)
  • Heavy-duty hydraulic cylinders with chrome plated rams
  • Polyurethane seals on cylinders
  • Rugged 3/4" steel plate scissor legs
  • Lifetime lubricated bearing on all rollers and pivot points
  • Hinged platform for convenient cylinder access
