DXS Series Double Scissor Lift

DXS Series Compact Scissor Lifts are high-performance, industrial-duty lifts featuring a smaller footprint than standard lifts while offering a full 2,000 lbs. of lifting capacity. They are ideal for a wide variety of work positioning, assembly, repair and inspection applications in factories, warehouses, retail stores, repair shops and more.

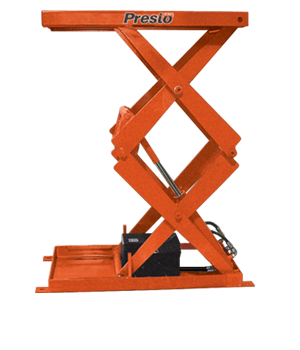

DXS Scissor Lift with 48" of Vertical Travel

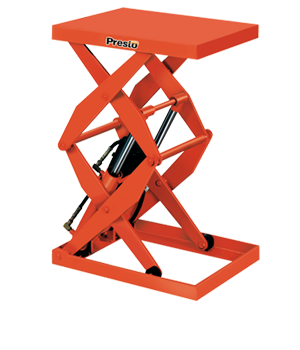

Small Footprint and Extended Travel

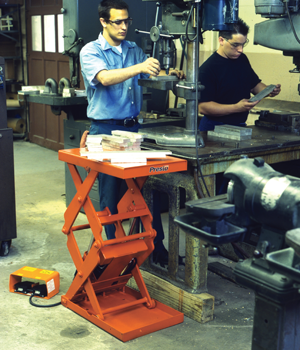

DXS Lift Feeding a Drill Press

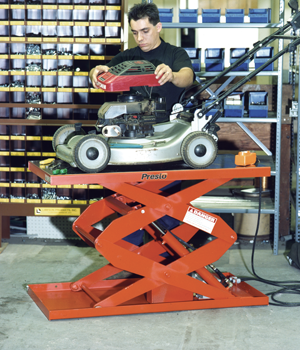

Ideal for Repair Shops

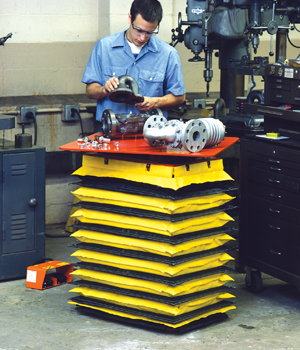

DXS Lift with Optional Turntable and Bellows Skirting

Model
Number 		Load
Capacity 		Raised
Height 		Lowered
Height 		End/Side
Capacity 		Maximum
Platform 		Lifting
Speed 		Std.
Motor		Std. Voltage/
Phase/HZ 		Shipping
Weight
Model
Number : DXS30 Series – 30" Travel
Model
Number : DXS30-5
Load
Capacity : 500 lbs
Raised
Height : 36 ¾"
Lowered
Height : 6 ¾"
End/Side
Capacity : 16" x 24"
Maximum
Platform : 30" x 36"
Lifting
Speed : 16 sec
Std.
Motor: 3-Jan
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 350 lbs
Model
Number : DXS30-10
Load
Capacity : 1000 lbs
Raised
Height : 36 ¾"
Lowered
Height : 6 ¾"
End/Side
Capacity : 16" x 24"
Maximum
Platform : 30" x 36"
Lifting
Speed : 18 sec
Std.
Motor: 3-Jan
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 360 lbs
Model
Number : DXS36 Series – 36" Travel
Model
Number : DXS36-10
Load
Capacity : 1000 lbs
Raised
Height : 43 ½"
Lowered
Height : 7 ½"
End/Side
Capacity : 24" x 36"
Maximum
Platform : 36" x 48"
Lifting
Speed : 40 sec
Std.
Motor: 2-Jan
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 460 lbs
Model
Number : DXS36-15
Load
Capacity : 1500 lbs
Raised
Height : 43 ½"
Lowered
Height : 7 ½"
End/Side
Capacity : 24" x 36"
Maximum
Platform : 36" x 48"
Lifting
Speed : 42 sec
Std.
Motor: 2-Jan
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 480 lbs
Model
Number : DXS36-20
Load
Capacity : 2000 lbs
Raised
Height : 43 ½"
Lowered
Height : 6"
End/Side
Capacity : 18" x 42"
Maximum
Platform : 36" x 54"
Lifting
Speed : 40 sec
Std.
Motor: 2-Jan
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 550 lbs
Model
Number : DXS48 Series – 48" Travel
Model
Number : DXS48-10
Load
Capacity : 1000 lbs
Raised
Height : 55 ½"
Lowered
Height : 7 ½"
End/Side
Capacity : 24" x 48"
Maximum
Platform : 36" x 60"
Lifting
Speed : 50 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 600 lbs
Model
Number : DXS48-15
Load
Capacity : 1500 lbs
Raised
Height : 55 ½"
Lowered
Height : 7 ½"
End/Side
Capacity : 24" x 48"
Maximum
Platform : 36" x 60"
Lifting
Speed : 54 sec
Std.
Motor: 1 ½
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 650 lbs
Model
Number : DXS48-20
Load
Capacity : 2000 lbs
Raised
Height : 57 ½"
Lowered
Height : 9 ½"
End/Side
Capacity : 24" x 40"
Maximum
Platform : 36" x 54"
Lifting
Speed : 42 sec
Std.
Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 800 lbs
Model
Number : DXS48-40
Load
Capacity : 4000 lbs
Raised
Height : 60"
Lowered
Height : 12"
End/Side
Capacity : 30" x 42"
Maximum
Platform : 48" x 60"
Lifting
Speed : 16 sec
Std.
Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1250 lbs
Model
Number : DXS60 Series – 60" Travel
Model
Number : DXS64-25
Load
Capacity : 2500 lbs
Raised
Height : 76 ½"
Lowered
Height : 12 ½"
End/Side
Capacity : 24" x 53"
Maximum
Platform : 42" x 66"
Lifting
Speed : 16 sec
Std.
Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1100 lbs
Model
Number : DXS60-40
Load
Capacity : 4000 lbs
Raised
Height : 74"
Lowered
Height : 14"
End/Side
Capacity : 30" x 53"
Maximum
Platform : 48" x 66"
Lifting
Speed : 30 sec
Std.
Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 1800 lbs
Model
Number : DXS72 Series – 72" Travel
Model
Number : DXS72-20
Load
Capacity : 2000 lbs
Raised
Height : 84 ½"
Lowered
Height : 12 ½"
End/Side
Capacity : 20" x 53"
Maximum
Platform : 36" x 66"
Lifting
Speed : 92 sec
Std.
Motor: 1
Std. Voltage/
Phase/HZ : 115/1/60
Shipping
Weight: 1250 lbs
Model
Number : DXS72-50
Load
Capacity : 5000 lbs
Raised
Height : 86"
Lowered
Height : 14"
End/Side
Capacity : 32" x 57"
Maximum
Platform : 54" x 72"
Lifting
Speed : 36 sec
Std.
Motor: 3
Std. Voltage/
Phase/HZ : 230,460/3/60
Shipping
Weight: 2000 lbs

XW Series Lift Tables can be modified with a variety of options and accessories

GRAVITY CONVEYOR TOPS
Roller conveyor mounted to platform transferring item on or off of lift. For integration with conveyor systems.
BALL TRANSFER TOPS
Platforms can be supplied with pneumatic ball transfers to allow for easy repositioning of items for access to all sides or transferring loads on to or off of lifts.
FORK POCKETS
Allow lift to be easily picked up and moved with a fork lift.
PORTABILITY / SEMI-LIVE ARRANGEMENT
A variety of portability options are available including 4 casters, or semi-live with skid spotter
ACCORDIAN / BELLOWS SKIRT
Vinyl pleated covering in yellow and black keeps debris from collecting under lift platform
PIT MOUNTED UNITS
Lifts can be configured for use in a pit. This allows the platform to sit flush with the floor when not in use to minimize obstructions.
OVERSIZED PLATFORMS
Platforms larger than standard are available. See chart above for MAX Platform dimensions.
12V DC & 24V DC POWER UNITS
Lifts can be configured for DC power with 12 volt or 24 volt motors.
SUPER CYCLE
For extremely high duty cycles lifts can be equipped with a Super Cycle Package that extends recommend time between maintenance to 200,000 cycles
LOWER LEVEL LIMIT SWITCH
prevents the lift table from traveling below a preset level.
VELOCITY FUSE
Prevents lift from falling should hydraulic hoses be accidentally severed.
UPPER TRAVEL LIMIT SWITCH
Prevents lift from traveling past a preset height.
WATER WASH DOWN MOTOR PACKAGE
NEMA 4 motor for use in wash down applications.
OPTIONAL POWER UNIT UPGRADES
Motor upgrades for increased lifting speed

Share this product

  • Available in capacities from 500 lbs. - 4,000 lbs.
  • Hand control pendant (foot control option available)
  • Heavy-duty hydraulic cylinders with chrome plated rams
  • Polyurethane seals on cylinders
  • Lifetime lubricated bearing on all rollers and pivot points
  • Hinged platform for convenient cylinder access
  • Options include casters, push button controls, special platforms, bellows guards, limit switches, and many more
