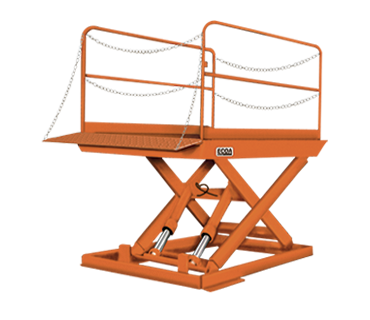

HLD - SizzrDok Loading Dock Lifts

The most completely equipped loading docks with the highest structural rating in the industry. Load capacities are 6,000 to 12,000 lbs., travel distances to 60 in. with platform sizes of 48 x 96 to 96 x 144 in.

Vertical Travel	Model	Capacity	Axle Load Max Ends	Axle Load Max Sides	Platform Size W x L	Base Frame	Low Height	Raised Height	Up Speed Approx.	Std. Motor	Ship Weight
Vertical Travel: 60	Model: HLD-080-608	Capacity : 8000	Axle Load Max Ends : 6500	Axle Load Max Sides : 5200	Platform Size W x L : 72 x 96	Base Frame : 63 x 88	Low Height : 12	Raised Height : 72	Up Speed Approx. : 15	Std. Motor : 5	Ship Weight: 4200
Vertical Travel: 60	Model: HLD-080-708	Capacity : 8000	Axle Load Max Ends : 6500	Axle Load Max Sides : 5000	Platform Size W x L : 84 x 96	Base Frame : 63 x 88	Low Height : 12	Raised Height : 72	Up Speed Approx. : 15	Std. Motor : 5	Ship Weight: 4400
Vertical Travel: 60	Model: HLD-080-808	Capacity : 8000	Axle Load Max Ends : 6500	Axle Load Max Sides : 5000	Platform Size W x L : 96 x 96	Base Frame : 63 x 88	Low Height : 12	Raised Height : 72	Up Speed Approx. : 15	Std. Motor : 5	Ship Weight: 4600
Vertical Travel: 60	Model: HLD-080-610	Capacity : 8000	Axle Load Max Ends : 6500	Axle Load Max Sides : 5000	Platform Size W x L : 72 x 120	Base Frame : 63 x 88	Low Height : 12	Raised Height : 72	Up Speed Approx. : 15	Std. Motor : 5	Ship Weight: 4500
Vertical Travel: 60	Model: HLD-080-710	Capacity : 8000	Axle Load Max Ends : 6500	Axle Load Max Sides : 5000	Platform Size W x L : 84 x 120	Base Frame : 63 x 88	Low Height : 12	Raised Height : 72	Up Speed Approx. : 15	Std. Motor : 5	Ship Weight: 4750
Vertical Travel: 60	Model: HLD-080-810	Capacity : 8000	Axle Load Max Ends : 6500	Axle Load Max Sides : 5000	Platform Size W x L : 96 x 120	Base Frame : 63 x 88	Low Height : 12	Raised Height : 72	Up Speed Approx. : 15	Std. Motor : 5	Ship Weight: 5000
Vertical Travel: 60	Model: HLD-100-608	Capacity : 10000	Axle Load Max Ends : 7500	Axle Load Max Sides : 7000	Platform Size W x L : 72 x 96	Base Frame : 63 x 88	Low Height : 14	Raised Height : 74	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 4900
Vertical Travel: 60	Model: HLD-100-808	Capacity : 10000	Axle Load Max Ends : 7500	Axle Load Max Sides : 6500	Platform Size W x L : 96 x 96	Base Frame : 88 x 88	Low Height : 14	Raised Height : 74	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5200
Vertical Travel: 60	Model: HLD-100-610	Capacity : 10000	Axle Load Max Ends : 7500	Axle Load Max Sides : 7000	Platform Size W x L : 72 x 120	Base Frame : 63 x 112	Low Height : 14	Raised Height : 74	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5100
Vertical Travel: 60	Model: HLD-100-810	Capacity : 10000	Axle Load Max Ends : 7500	Axle Load Max Sides : 6500	Platform Size W x L : 96 x 120	Base Frame : 88 x 112	Low Height : 14	Raised Height : 74	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5400
Vertical Travel: 60	Model: HLD-100-612	Capacity : 10000	Axle Load Max Ends : 7500	Axle Load Max Sides : 6000	Platform Size W x L : 72 x 144	Base Frame : 63 x 112	Low Height : 14	Raised Height : 74	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5500
Vertical Travel: 60	Model: HLD-100-812	Capacity : 10000	Axle Load Max Ends : 7500	Axle Load Max Sides : 5500	Platform Size W x L : 96 x 144	Base Frame : 88 x 112	Low Height : 14	Raised Height : 74	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5800
Vertical Travel: 60	Model: HLD-120-608	Capacity : 12000	Axle Load Max Ends : 9600	Axle Load Max Sides : 8400	Platform Size W x L : 72 x 96	Base Frame : 63 x 88	Low Height : 16	Raised Height : 76	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5400
Vertical Travel: 60	Model: HLD-120-808	Capacity : 12000	Axle Load Max Ends : 9600	Axle Load Max Sides : 8400	Platform Size W x L : 96 x 96	Base Frame : 88 x 88	Low Height : 16	Raised Height : 76	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5700
Vertical Travel: 60	Model: HLD-120-610	Capacity : 12000	Axle Load Max Ends : 9600	Axle Load Max Sides : 8400	Platform Size W x L : 72 x 120	Base Frame : 63 x 12	Low Height : 16	Raised Height : 76	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5600
Vertical Travel: 60	Model: HLD-120-810	Capacity : 12000	Axle Load Max Ends : 9600	Axle Load Max Sides : 8400	Platform Size W x L : 96 x 120	Base Frame : 88 x 112	Low Height : 16	Raised Height : 76	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 5900
Vertical Travel: 60	Model: HLD-120-612	Capacity : 12000	Axle Load Max Ends : 9600	Axle Load Max Sides : 8400	Platform Size W x L : 72 x 144	Base Frame : 63 x 112	Low Height : 16	Raised Height : 76	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 6000
Vertical Travel: 60	Model: HLD-120-812	Capacity : 12000	Axle Load Max Ends : 9600	Axle Load Max Sides : 8400	Platform Size W x L : 96 x 144	Base Frame : 88 x 112	Low Height : 16	Raised Height : 76	Up Speed Approx. : 12	Std. Motor : 5	Ship Weight: 6900

Share this product

Safety tread steel plate platform and bridge plate with 2 safety chains
Removable steel handrails
Four safety chains with snap hooks
Structural tube scissor legs and torque tubes
Hinged safety restraint maintenance bars
Velocity fuses on cylinders
Upper travel limit switch
Mechanical upper travel back-up stops
Double wire braid pressure hoses
5HP, 230/460V, 3PH, 60Hz
Pushbutton pendant control
24V operating control voltage
